Retrieval-Augmented Generation

Overview

Retrieval-Augmented Generation (RAG) enables your agent to access and use large knowledge bases during conversations. Instead of loading entire documents into the context window, RAG retrieves only the most relevant information for each user query, allowing your agent to:

Access much larger knowledge bases than would fit in a prompt
Provide more accurate, knowledge-grounded responses
Reduce hallucinations by referencing source material
Scale knowledge without creating multiple specialized agents

RAG is ideal for agents that need to reference large documents, technical manuals, or extensive knowledge bases that would exceed the context window limits of traditional prompting. RAG adds on slight latency to the response time of your agent, around 250ms.

How RAG works

When RAG is enabled, your agent processes user queries through these steps:

Query processing: The user's question is analyzed and reformulated for optimal retrieval.
Embedding generation: The processed query is converted into a vector embedding that represents the user's question.
Retrieval: The system finds the most semantically similar content from your knowledge base.
Response generation: The agent generates a response using both the conversation context and the retrieved information.

This process ensures that relevant information to the user's query is passed to the LLM to generate a factually correct answer.

Guide

Prerequisites

An ElevenLabs account
A configured ElevenLabs Conversational Agent
At least one document added to your agent's knowledge base

Enable RAG for your agent

Update via the dashboard

In your agent's settings, navigate to the Knowledge Base section and toggle on the Use RAG option. Configure the embedding model, maximum document chunks, and maximum vector distance under the Advanced tab as needed.

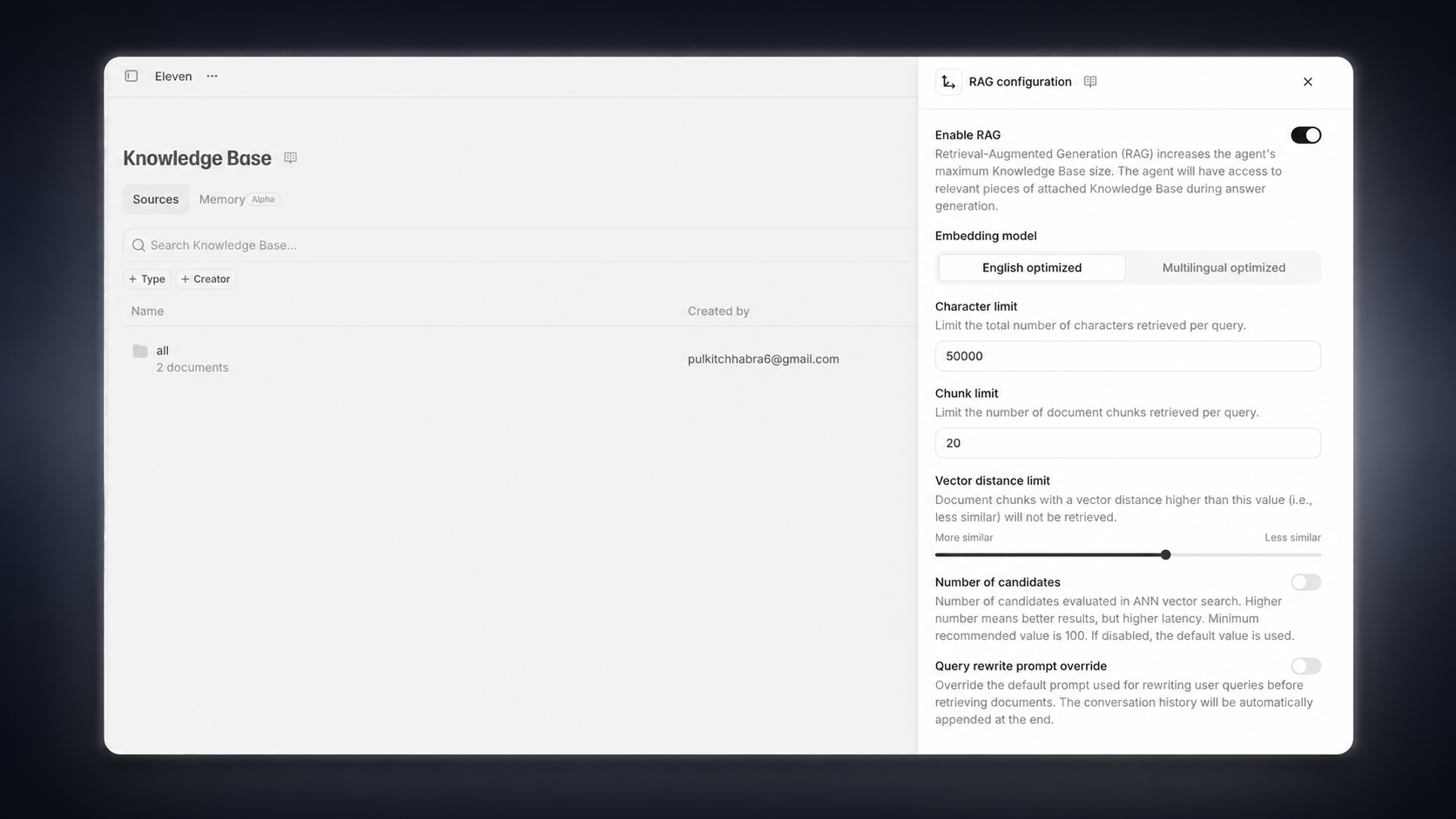

RAG configuration options including embedding model selection

Update via the CLI

Pull the agent configuration

Bash

elevenlabs agents pull --agent "<agent-name>"

Edit `agent_configs/<agent-name>.json`

Set conversation_config.agent.prompt.rag:

JSON

{
  "conversation_config": {
    "agent": {
      "prompt": {
        "rag": {
          "enabled": true,
          "embedding_model": "e5_mistral_7b_instruct",
          "max_vector_distance": 0.6,
          "max_documents_length": 50000,
          "max_retrieved_rag_chunks_count": 20
        }
      }
    }
  }
}

Push your changes

Bash

elevenlabs agents push --agent "<agent-name>"

Update via the API

See the API implementation section below for full code that triggers RAG indexing on a document and updates the agent configuration.

Knowledge base indexing

Each document in your knowledge base needs to be indexed before it can be used with RAG. This process happens automatically when a document is added to an agent with RAG enabled.

Configure document usage modes (optional)

For each document in your knowledge base, you can choose how it's used:

Auto (default): The document is only retrieved when relevant to the query
Prompt: The document is always included in the system prompt, regardless of relevance

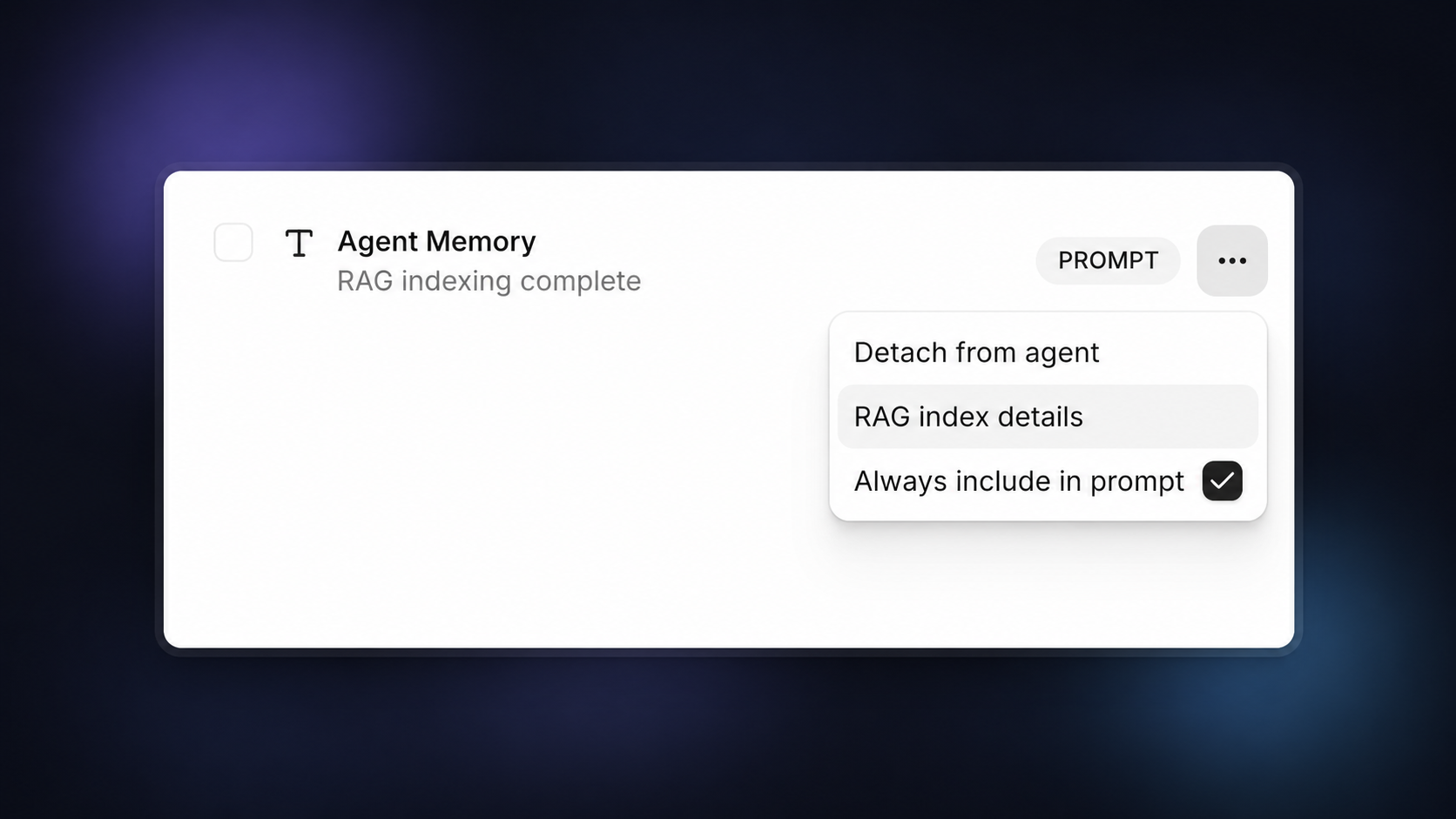

Document usage mode options in the knowledge base

Test your RAG-enabled agent

After saving your configuration, test your agent by asking questions related to your knowledge base. The agent should now be able to retrieve and reference specific information from your documents.

Usage limits

To ensure fair resource allocation, ElevenLabs enforces limits on the total size of documents that can be indexed for RAG per workspace, based on subscription tier.

The limits are as follows:

Subscription Tier	Total Document Size Limit	Notes
Free	1MB	Indexes may be deleted after inactivity.
Starter	2MB
Creator	20MB
Pro	100MB
Scale	500MB
Business	1GB
Enterprise	1GB	Higher limits available based on tier and agreement.

Note:

These limits apply to the total original file size of documents indexed for RAG, not the internal storage size of the RAG index itself (which can be significantly larger).
Documents smaller than 500 bytes cannot be indexed for RAG and will automatically be used in the prompt instead.

API implementation

You can also implement RAG through the API:

Python

from elevenlabs import ElevenLabs
import time

# Initialize the ElevenLabs client
elevenlabs = ElevenLabs(api_key="your-api-key")

# First, index a document for RAG
document_id = "your-document-id"
embedding_model = "e5_mistral_7b_instruct"

# Trigger RAG indexing
response = elevenlabs.conversational_ai.knowledge_base.document.compute_rag_index(
    documentation_id=document_id,
    model=embedding_model
)

# Check indexing status
while response.status not in ["SUCCEEDED", "FAILED"]:
    time.sleep(5)  # Wait 5 seconds before checking status again
    response = elevenlabs.conversational_ai.knowledge_base.document.compute_rag_index(
        documentation_id=document_id,
        model=embedding_model
    )

# Then update agent configuration to use RAG
agent_id = "agent_7101k5zvyjhmfg983brhmhkd98n6"

# Get the current agent configuration
agent_config = elevenlabs.conversational_ai.agents.get(agent_id=agent_id)

# Enable RAG in the agent configuration
agent_config.agent.prompt.rag = {
    "enabled": True,
    "embedding_model": "e5_mistral_7b_instruct",
    "max_documents_length": 10000
}

# Update document usage mode if needed
for i, doc in enumerate(agent_config.agent.prompt.knowledge_base):
    if doc.id == document_id:
        agent_config.agent.prompt.knowledge_base[i].usage_mode = "auto"

# Update the agent configuration
elevenlabs.conversational_ai.agents.update(
    agent_id=agent_id,
    conversation_config=agent_config.agent
)

JavaScript

// First, index a document for RAG
async function enableRAG(documentId, agentId, apiKey) {
  try {
    // Initialize the ElevenLabs client
    const { ElevenLabsClient } = require("@elevenlabs/elevenlabs-js");
    const elevenlabs = new ElevenLabsClient({
      apiKey: apiKey,
    });

    // Start document indexing for RAG
    let response = await elevenlabs.conversationalAi.knowledgeBase.document.computeRagIndex(
      documentId,
      {
        model: "e5_mistral_7b_instruct",
      }
    );

    // Check indexing status until completion
    while (response.status !== "SUCCEEDED" && response.status !== "FAILED") {
      await new Promise((resolve) => setTimeout(resolve, 5000)); // Wait 5 seconds
      response = await elevenlabs.conversationalAi.knowledgeBase.document.computeRagIndex(
        documentId,
        {
          model: "e5_mistral_7b_instruct",
        }
      );
    }

    if (response.status === "FAILED") {
      throw new Error("RAG indexing failed");
    }

    // Get current agent configuration
    const agentConfig = await elevenlabs.conversationalAi.agents.get(agentId);

    // Enable RAG in the agent configuration
    const updatedConfig = {
      conversation_config: {
        ...agentConfig.agent,
        prompt: {
          ...agentConfig.agent.prompt,
          rag: {
            enabled: true,
            embedding_model: "e5_mistral_7b_instruct",
            max_documents_length: 10000,
          },
        },
      },
    };

    // Update document usage mode if needed
    if (agentConfig.agent.prompt.knowledge_base) {
      agentConfig.agent.prompt.knowledge_base.forEach((doc, index) => {
        if (doc.id === documentId) {
          updatedConfig.conversation_config.prompt.knowledge_base[index].usage_mode = "auto";
        }
      });
    }

    // Update the agent configuration
    await elevenlabs.conversationalAi.agents.update(agentId, updatedConfig);

    console.log("RAG configuration updated successfully");
    return true;
  } catch (error) {
    console.error("Error configuring RAG:", error);
    throw error;
  }
}

// Example usage
// enableRAG('your-document-id', 'agent_7101k5zvyjhmfg983brhmhkd98n6', 'your-api-key')
//   .then(() => console.log('RAG setup complete'))
//   .catch(err => console.error('Error:', err));
