Amazon Connect

Hand Amazon Connect voice contacts to ElevenAgents through Amazon Connect’s native third-party AI agent (A2A) integration.

Overview

The Amazon Connect integration connects an Amazon Connect contact flow directly to an agent in ElevenAgents over Amazon Connect’s third-party AI agent protocol, an extension of the open A2A protocol. Amazon Connect owns telephony, routing, and the queue; ElevenAgents owns the conversation. No SIP trunk, Twilio number, or middleware is required. AWS documents the feature under Agent-to-agent collaboration; this guide covers the ElevenLabs specifics and the AWS steps needed to reach an ElevenLabs agent.

The same flow serves inbound calls and outbound contacts started with StartOutboundVoiceContact. When the ElevenLabs agent finishes, Amazon Connect continues your contact flow and branches on the outcome it received.

How the integration works

A contact flow reaches a Get customer input block that invokes an Amazon Lex V2 bot with the AMAZON.QInConnectIntent intent.
Amazon Connect’s orchestration AI agent hands the conversation off immediately to the third-party application you registered for ElevenLabs.
Amazon Connect opens a WebSocket to the ElevenLabs endpoint in the application’s AccessUrl, authenticating with the API key stored in AWS Secrets Manager.
Amazon Connect signals that the caller’s channel is live, then Amazon Connect and ElevenLabs exchange 16-bit linear PCM audio as A2A messages. Amazon Connect proposes the sample rate and ElevenLabs adopts it, so no audio format changes are needed on the agent.
When the agent ends the call, ElevenLabs finishes the session with a Complete outcome and the flow continues from the Lex block. An Escalate outcome, which routes the caller to a human queue, is supported on the wire and will be exposed through the transfer tool; see Transferring to a human.

Requirements

Before you begin, ensure you have:

An Amazon Connect instance on the Connect Customer tier with third-party AI agent support enabled for the account and Region.
An Amazon Q in Connect assistant associated with the instance.
AWS permissions to create KMS keys, Secrets Manager secrets, AppIntegrations applications, Connect security profiles, Amazon Q in Connect AI agents, Lex V2 bots, and contact flows.
An ElevenLabs workspace with the Amazon Connect transport enabled.
An ElevenLabs agent and a dedicated API key.
AWS CLI v2 and awscurl (pip install awscurl) for the calls whose request shapes are not in released CLI versions yet.

Configure ElevenLabs

Create or select an agent
Create the agent in ElevenAgents. Give it a first message if it should speak as soon as the hand-off completes; Amazon Connect plays nothing of its own during the session.
Enable End call
In Agent → Tools → System tools, enable End call so the agent can finish the session when the caller’s request is resolved. Amazon Connect then continues your flow with the Complete outcome.
Create a dedicated API key
Create an API key in the same workspace as the agent and scope it to ElevenAgents. You will store it in AWS Secrets Manager in the next section; do not paste it anywhere else.

Note the WebSocket URL

Amazon Connect connects to a URL that contains your agent ID:

Environment	AccessUrl
Default	`wss://api.elevenlabs.io/v1/convai/conversation/amazon-connect/<agent_id>`
Data residency	`wss://api.<region>.residency.elevenlabs.io/v1/convai/conversation/amazon-connect/<agent_id>`

Register the ElevenLabs application in AWS

Everything in this section is an API call. Set the values you will reuse once:

Bash

export AWS_REGION=<REGION>          # Region of your Amazon Connect instance
export ACCOUNT_ID=<ACCOUNT_ID>
export INSTANCE_ID=<INSTANCE_ID>    # Amazon Connect instance ID
export INSTANCE_ARN=arn:aws:connect:$AWS_REGION:$ACCOUNT_ID:instance/$INSTANCE_ID
export AGENT_ID=<AGENT_ID>          # ElevenLabs agent ID

Create an Amazon Q in Connect assistant

Skip this step if the instance already has an assistant. Otherwise create one and associate it with the instance:

Bash

aws qconnect create-assistant --name elevenlabs-assistant --type AGENT --region $AWS_REGION
aws connect create-integration-association --instance-id $INSTANCE_ID \
  --integration-type WISDOM_ASSISTANT --integration-arn <ASSISTANT_ARN> --region $AWS_REGION

Record the assistant ID and ARN.

Store the API key

Amazon Connect reads the key from Secrets Manager with its own service principal, so the secret must be encrypted with a customer-managed KMS key that grants connect.amazonaws.com decrypt access. The default aws/secretsmanager key cannot be used.

kms-key-policy.json

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "AccountAdmin",
      "Effect": "Allow",
      "Principal": { "AWS": "arn:aws:iam::<ACCOUNT_ID>:root" },
      "Action": "kms:*",
      "Resource": "*"
    },
    {
      "Sid": "AllowConnectDecrypt",
      "Effect": "Allow",
      "Principal": { "Service": "connect.amazonaws.com" },
      "Action": ["kms:Decrypt", "kms:DescribeKey"],
      "Resource": "*"
    }
  ]
}

Save the ElevenLabs API key in a file so that it never appears in your shell history, then create the key and the secret:

Bash

KMS_KEY_ID=$(aws kms create-key --description "ElevenLabs agent API key" \
  --policy file://kms-key-policy.json --region $AWS_REGION \
  --query KeyMetadata.KeyId --output text)
SECRET_ARN=$(aws secretsmanager create-secret --name elevenlabs/agent-api-key \
  --kms-key-id "$KMS_KEY_ID" --secret-string file://elevenlabs-api-key.txt \
  --region $AWS_REGION --query ARN --output text)
rm elevenlabs-api-key.txt

Grant Amazon Connect read access to the secret:

secret-resource-policy.json

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "AllowConnectRead",
      "Effect": "Allow",
      "Principal": { "Service": "connect.amazonaws.com" },
      "Action": ["secretsmanager:GetSecretValue", "secretsmanager:DescribeSecret"],
      "Resource": "<SECRET_ARN>"
    }
  ]
}

Bash

aws secretsmanager put-resource-policy --secret-id "$SECRET_ARN" \
  --resource-policy file://secret-resource-policy.json --region $AWS_REGION

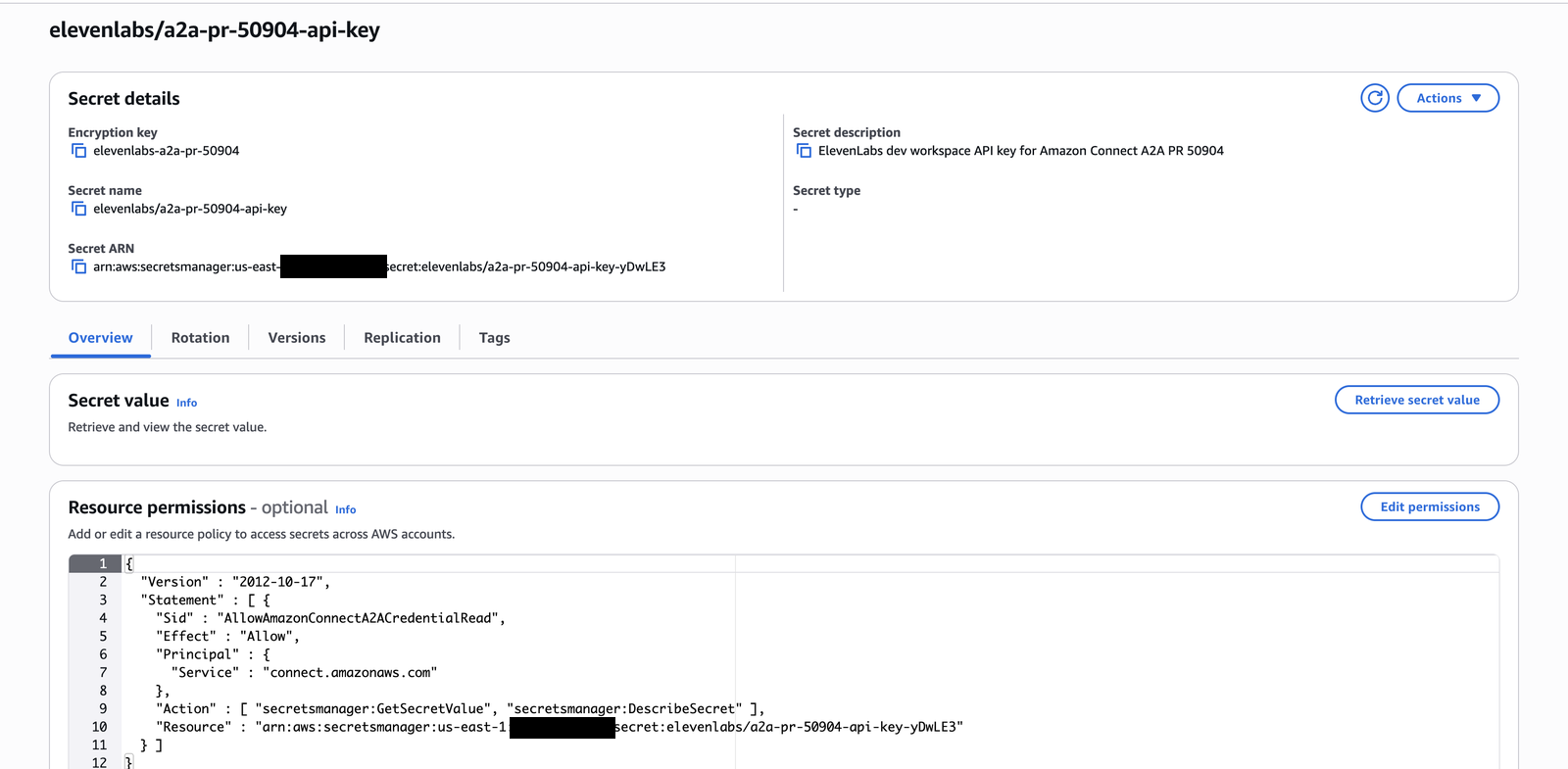

Secrets Manager secret encrypted with the customer-managed key and its resource policy for connect.amazonaws.com

Create the third-party application

Register the ElevenLabs WebSocket URL as an AppIntegrations application of type A2A_SERVER. AuthConfig is mandatory for this type.

create-application.json

{
  "Name": "elevenlabs-agent",
  "Namespace": "elevenlabs-agent",
  "Description": "ElevenLabs agent over the Amazon Connect A2A extension",
  "ApplicationType": "A2A_SERVER",
  "ApplicationSourceConfig": {
    "ExternalUrlConfig": {
      "AccessUrl": "wss://api.elevenlabs.io/v1/convai/conversation/amazon-connect/<AGENT_ID>"
    }
  },
  "AuthConfig": {
    "AuthType": "API_KEY",
    "CredentialProviderIdentifier": "<SECRET_ARN>"
  }
}

Bash

awscurl --service app-integrations --region $AWS_REGION -X POST \
  -H 'Content-Type: application/json' --data @create-application.json \
  "https://app-integrations.$AWS_REGION.amazonaws.com/applications"

The response contains the application Id and Arn; export them as APPLICATION_ID and APPLICATION_ARN. The Amazon Connect console does not list A2A_SERVER applications, so verify with the API:

Bash

aws appintegrations get-application --arn "$APPLICATION_ARN" --region $AWS_REGION

Associate the application with your instance

Bash

awscurl --service connect --region $AWS_REGION -X PUT -H 'Content-Type: application/json' \
  --data "{\"IntegrationArn\": \"$APPLICATION_ARN\", \"IntegrationType\": \"APPLICATION\"}" \
  "https://connect.$AWS_REGION.amazonaws.com/instance/$INSTANCE_ID/integration-associations"
aws connect list-integration-associations --instance-id $INSTANCE_ID \
  --integration-type APPLICATION --region $AWS_REGION

Allow the application in a security profile

The security profile attached to the orchestration AI agent must list the application under its allowed AI agents, or the hand-off fails at runtime.

Bash

SECURITY_PROFILE_ID=$(aws connect create-security-profile --instance-id $INSTANCE_ID \
  --security-profile-name elevenlabs-a2a --permissions QConnectAIAgents.View Wisdom.View \
  --region $AWS_REGION --query SecurityProfileId --output text)
awscurl --service connect --region $AWS_REGION -X POST -H 'Content-Type: application/json' \
  --data "{\"AllowedAIAgents\": [{\"Arn\": \"$APPLICATION_ARN\", \"Type\": \"THIRD_PARTY\"}]}" \
  "https://connect.$AWS_REGION.amazonaws.com/security-profiles/$INSTANCE_ID/$SECURITY_PROFILE_ID"

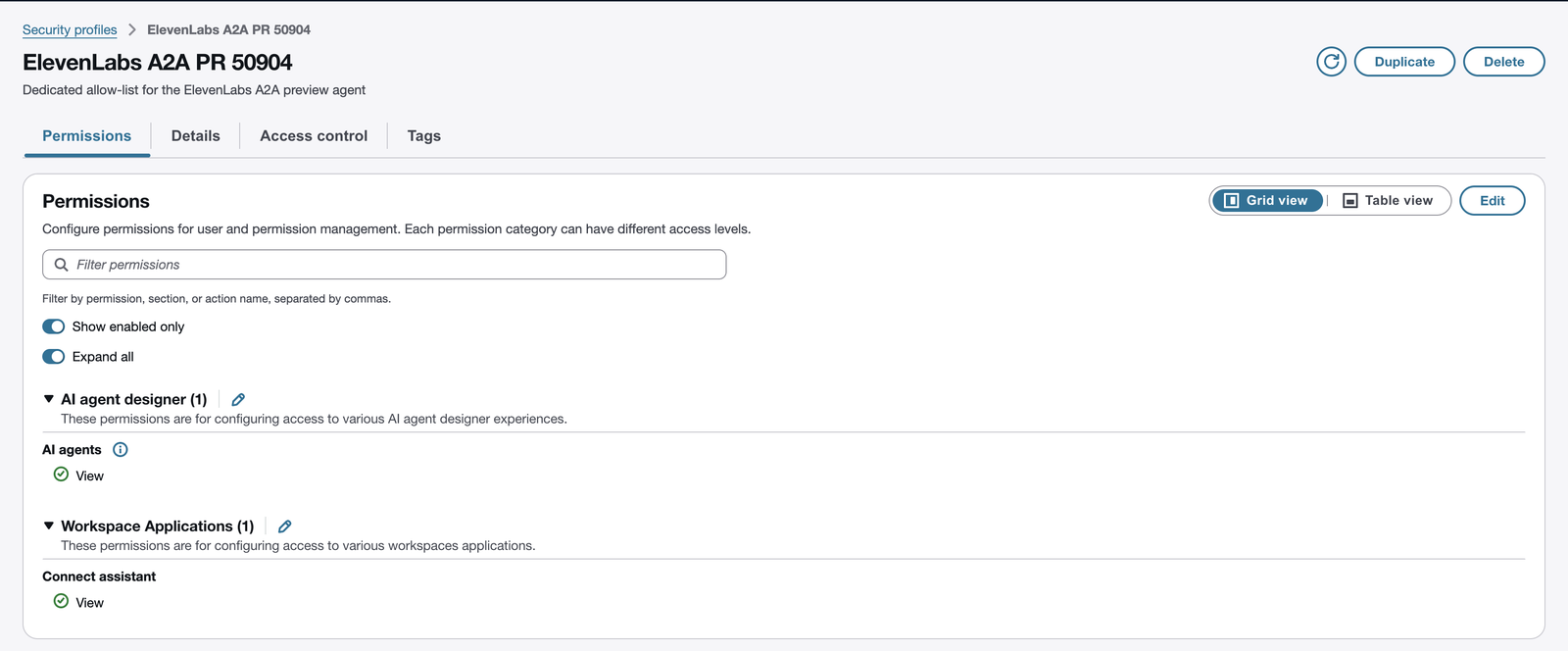

The admin website shows the profile and its permissions but not the allowed AI agents; those are only visible through the API.

Create and publish the orchestration AI agent

The orchestration agent hands every voice conversation to the application immediately, with audio streaming enabled. Voice sessions require immediate hand-off; text streaming (audioStreamingEnabled set to false) and delegateAgentConfiguration are not supported by ElevenLabs.

create-ai-agent.json

{
  "name": "elevenlabs-handoff",
  "type": "ORCHESTRATION",
  "visibilityStatus": "PUBLISHED",
  "configuration": {
    "orchestrationAIAgentConfiguration": {
      "connectInstanceArn": "<INSTANCE_ARN>",
      "locale": "en_US",
      "multiAgentConfigurations": [
        {
          "handoffAgentConfiguration": {
            "agentTarget": { "applicationId": "<APPLICATION_ARN>" },
            "instruction": {
              "instruction": "Immediately hand off every voice conversation to the ElevenLabs agent."
            },
            "audioStreamingEnabled": true,
            "immediateHandoff": true
          }
        }
      ]
    }
  }
}

Bash

awscurl --service wisdom --region $AWS_REGION -X POST -H 'Content-Type: application/json' \
  --data @create-ai-agent.json \
  "https://wisdom.$AWS_REGION.amazonaws.com/assistants/<ASSISTANT_ID>/aiagents"
aws qconnect create-ai-agent-version --assistant-id <ASSISTANT_ID> \
  --ai-agent-id <AI_AGENT_ID> --region $AWS_REGION

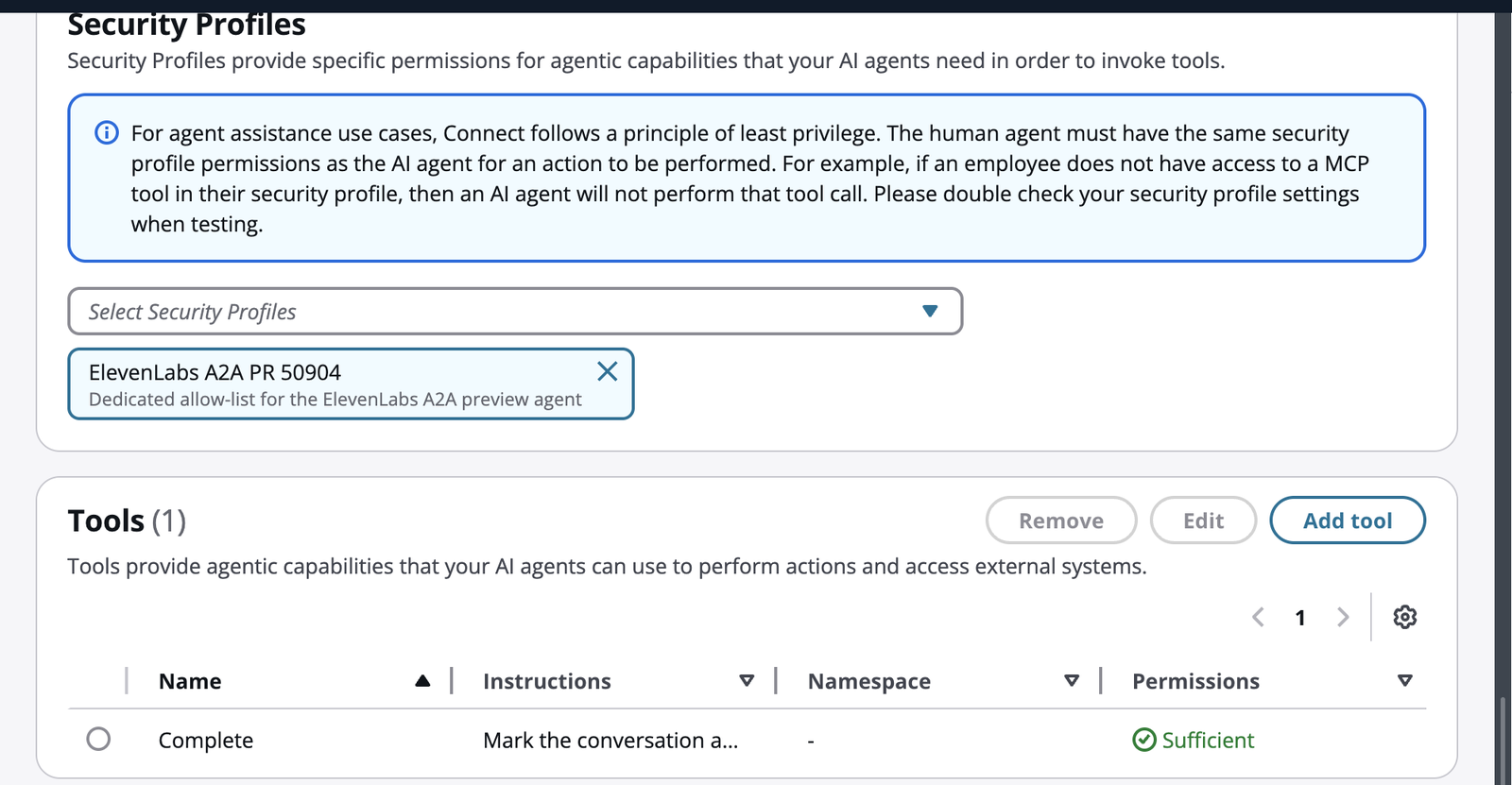

Publishing returns a versioned ARN (<AI_AGENT_ARN>:1); the contact flow references it. Attach the security profile to both the unversioned and the versioned agent:

Bash

for ARN in <AI_AGENT_ARN> <AI_AGENT_ARN>:1; do
  aws connect associate-security-profiles --instance-id $INSTANCE_ID --entity-arn "$ARN" \
    --entity-type AI_AGENT --security-profiles Id=$SECURITY_PROFILE_ID --region $AWS_REGION
done

Build the contact flow

Create the Lex bot

Create a Lex V2 bot whose only intent is the built-in AMAZON.QInConnectIntent, configured with your assistant ARN. Do not add other intents.
Enable speech-to-speech on the bot locale. Bidirectional audio streaming only works with Sonic speech-to-speech bots.
Allow the bot’s IAM role to use the assistant. Without this the hand-off fails inside AWS with HTTP 403 before any request reaches ElevenLabs. Attach a policy like:

lex-role-policy.json

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": ["wisdom:CreateSession", "wisdom:GetAssistant"],
      "Resource": ["<ASSISTANT_ARN>", "<ASSISTANT_ARN>/*"]
    },
    {
      "Effect": "Allow",
      "Action": ["wisdom:SendMessage", "wisdom:GetNextMessage"],
      "Resource": "arn:aws:wisdom:<REGION>:<ACCOUNT_ID>:session/<ASSISTANT_ID>/*"
    }
  ]
}

Build the bot, create a version and an alias, and associate the alias with the instance:

Bash

aws connect associate-bot --instance-id $INSTANCE_ID \
  --lex-v2-bot AliasArn=<LEX_ALIAS_ARN> --region $AWS_REGION

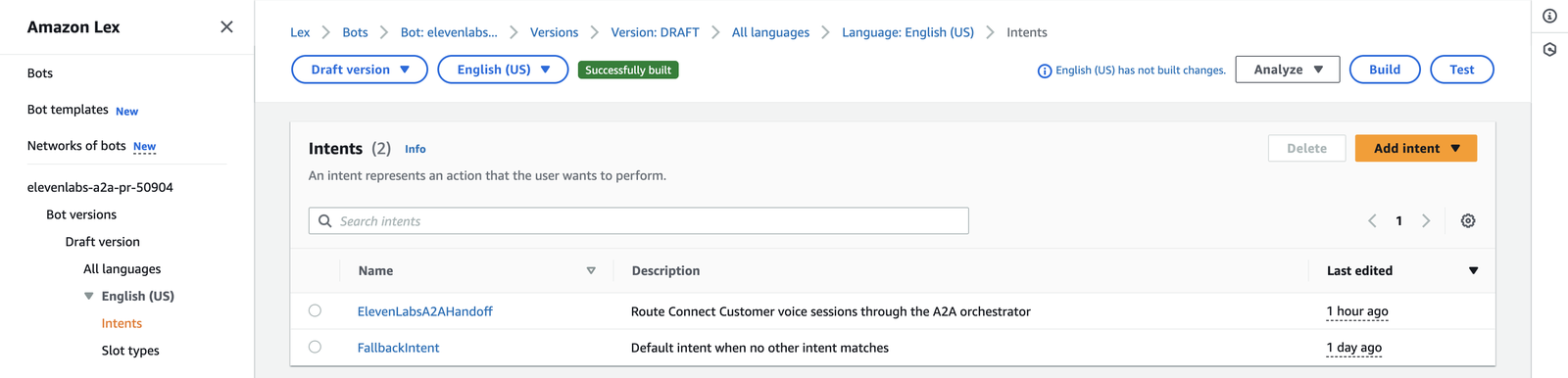

Lex V2 bot intents list with the Q in Connect hand-off intent and the built-in fallback intent

Add the assistant and the Lex block
In the flow designer, add these blocks in order:
1. Set logging behavior: enabled. The flow log is how you verify the hand-off below.
2. Connect assistant: select your Amazon Q in Connect assistant.

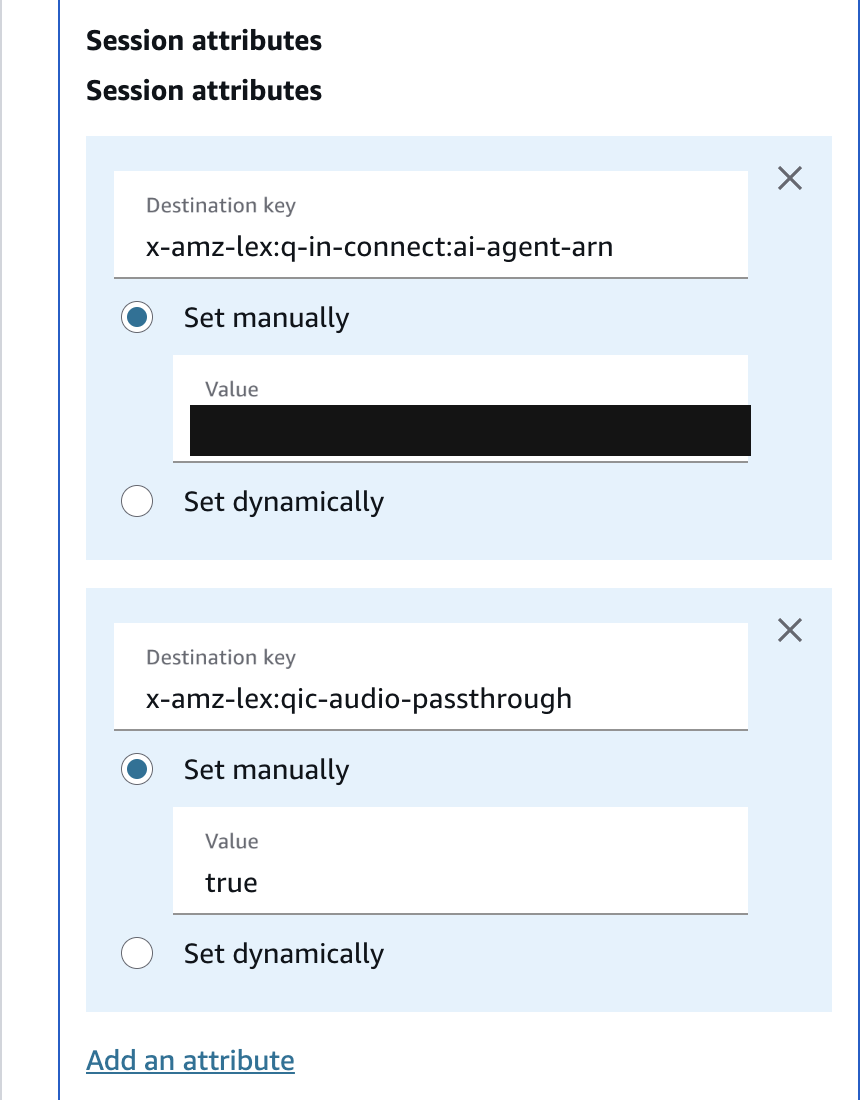

3. Get customer input: on the Amazon Lex tab choose Enter an ARN and paste the bot alias ARN. Leave the text-to-speech prompt as a single space so that Amazon Connect plays nothing before the hand-off. Under Session attributes, add two attributes set manually:
Destination key Value
x-amz-lex:q-in-connect:ai-agent-arn The versioned orchestration agent ARN (...:1).
x-amz-lex:qic-audio-passthrough true
x-amz-lex:qic-audio-passthrough gates the third-party voice path during AWS’s prelaunch period. AWS states the attribute is no longer needed once the feature is public; leaving it in place is harmless.

Destination key	Value
`x-amz-lex:q-in-connect:ai-agent-arn`	The versioned orchestration agent ARN (`...:1`).
`x-amz-lex:qic-audio-passthrough`	`true`

Branch on the outcome

Amazon Connect surfaces the ElevenLabs outcome to the flow as the $.Lex.SessionAttributes.Tool attribute. Add a Check contact attributes block after the Lex block, set Namespace to Lex, Key to Session attributes, and Session Attribute Key to Tool, then add an Equals condition per outcome:

Value	Meaning	Suggested route
`Complete`	The agent ended the call, for example with the End call tool.	Disconnect
`Escalate`	The agent asked for a human (see Transferring to a human).	Set working queue → Transfer to queue

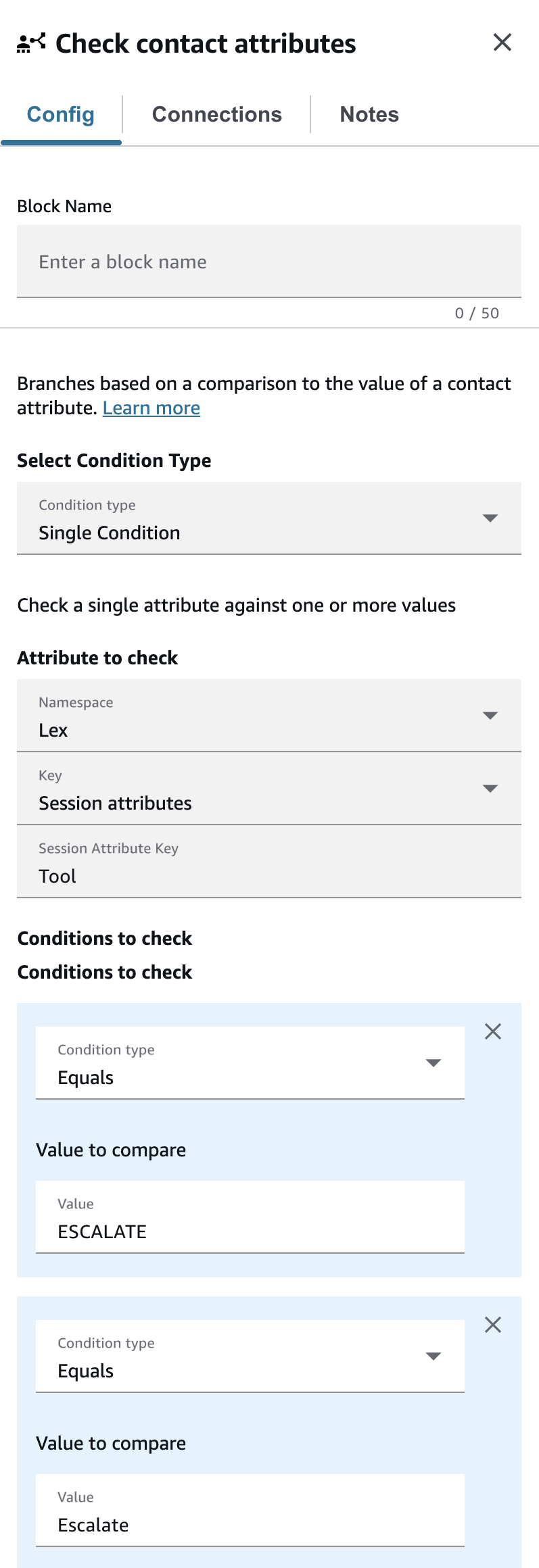

Check contact attributes block configured on the Lex session attribute Tool with Equals conditions for each outcome

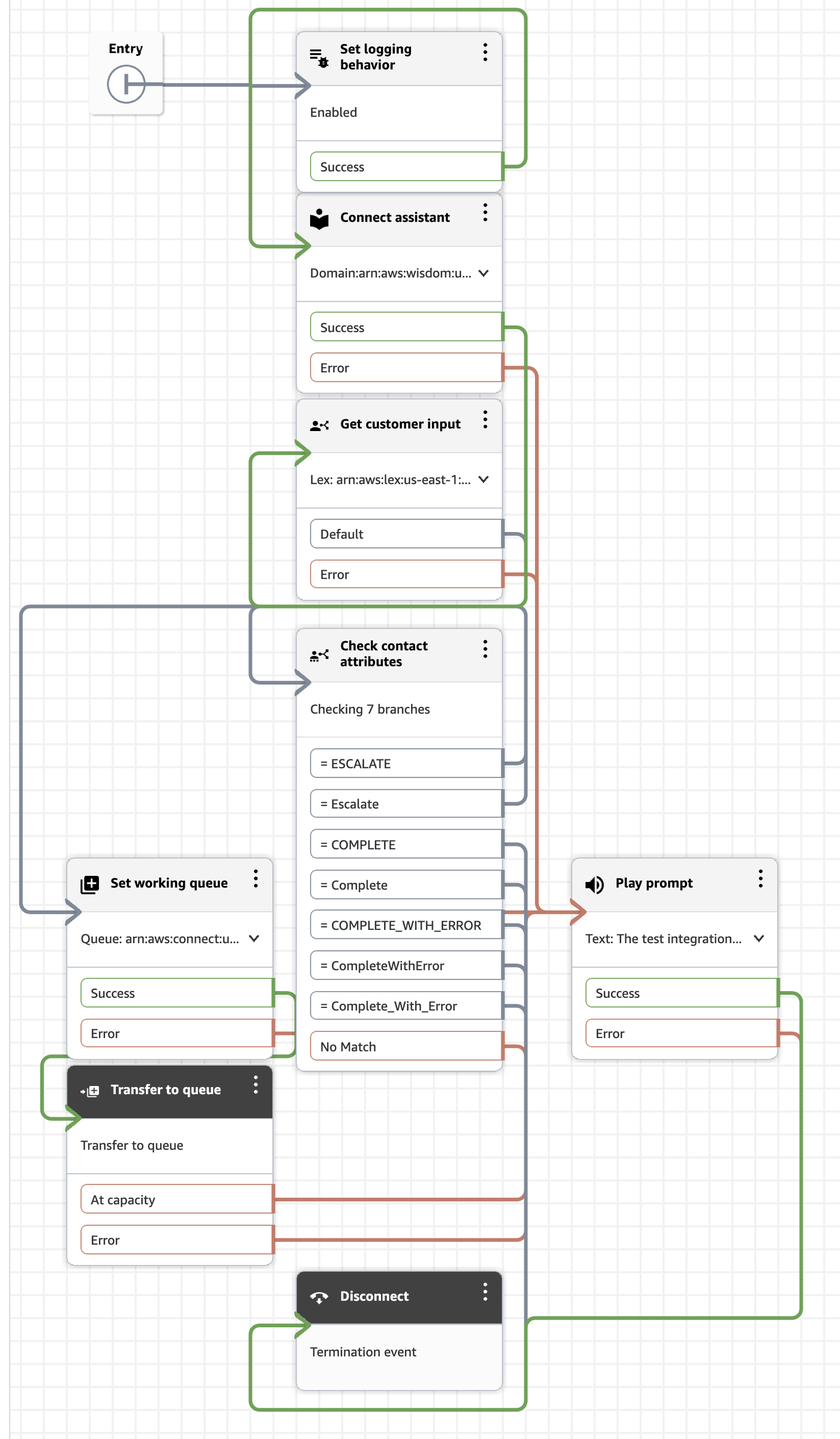

Contact flow with the Get customer input block leading to a Check contact attributes block that routes Escalate to a queue and Complete to a disconnect

The flow above compares against both spellings of each outcome so it keeps working if the casing changes.

Publish and assign

Publish the flow, then point a claimed phone number at it:

Bash

aws connect associate-phone-number-contact-flow --instance-id $INSTANCE_ID \
  --phone-number-id <PHONE_NUMBER_ID> --contact-flow-id <CONTACT_FLOW_ID> --region $AWS_REGION

For outbound calls, start the contact with the same flow; Amazon Connect dials the customer and hands the answered call to ElevenLabs:

Bash

aws connect start-outbound-voice-contact --instance-id $INSTANCE_ID \
  --contact-flow-id <CONTACT_FLOW_ID> --destination-phone-number <E164_NUMBER> \
  --source-phone-number <YOUR_CONNECT_NUMBER> --region $AWS_REGION

Test the integration

Place a call
Call the number. The agent’s first message plays a few seconds after the flow reaches the Lex block; the hand-off inside AWS takes about three seconds before ElevenLabs is contacted. Have a short conversation and say goodbye: the agent calls End call, the ElevenLabs session ends with Complete, and your flow continues from the Lex block.
Check the conversation in ElevenLabs
Open the conversation in Conversations. Its source is Amazon Connect and the Client data tab lists the amazon_connect_* dynamic variables the session received.
Check the flow log in AWS
With logging enabled, every block writes an entry to the instance’s flow log group. The Get customer input block records the outcome it received from ElevenLabs:
Bash
```
aws logs filter-log-events --log-group-name /aws/connect/<INSTANCE_ALIAS> \
  --start-time $(( $(date +%s) - 600 ))000 --region $AWS_REGION \
  --query 'events[].message' --output text | tr '\t' '\n' | grep -o '"Results": *"[A-Za-z_]*"'
```
Expect "Results": "Complete" for the Lex block, followed by the blocks on your Complete branch.

Dynamic variables

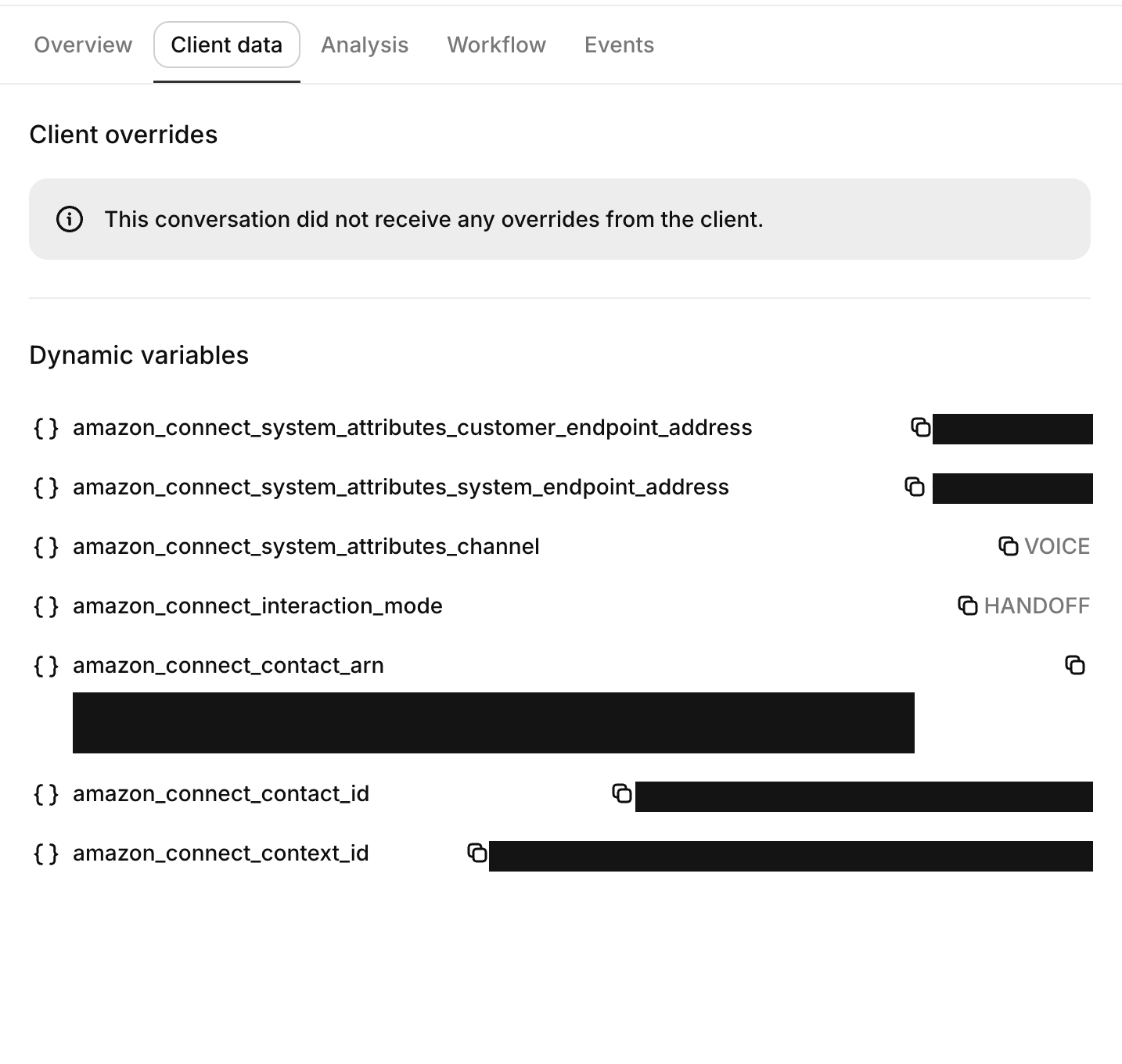

Amazon Connect sends the contact’s system attributes with every session. ElevenLabs exposes them, together with the session identifiers, as dynamic variables:

Dynamic variable	Description
`system__caller_id`	The customer’s phone number (Amazon Connect’s customer endpoint).
`system__called_number`	The Amazon Connect phone number the contact is on (system endpoint).
`system__call_id`	The Amazon Connect contact ID.
`amazon_connect_system_attributes_channel`	The contact channel, for example `VOICE`.
`amazon_connect_system_attributes_customer_endpoint_address`	The customer endpoint address as sent by Amazon Connect.
`amazon_connect_system_attributes_system_endpoint_address`	The system endpoint address as sent by Amazon Connect.
`amazon_connect_interaction_mode`	The collaboration mode, for example `HANDOFF`.
`amazon_connect_contact_id`	The Amazon Connect contact ID.
`amazon_connect_contact_arn`	The full contact ARN.
`amazon_connect_context_id`	The A2A session (context) ID.
`amazon_connect_instance_id`	The instance ID.
`amazon_connect_instance_arn`	The instance ARN.

On Amazon Connect sessions system__caller_id is always the customer and system__called_number is always the Amazon Connect number, for both inbound and outbound contacts.

Every other member of the contact context Amazon Connect sends is exposed the same way: nested names are joined with underscores and converted to snake case under the amazon_connect_ prefix. Custom contact attributes set in your flow with Set contact attributes are not part of the context Amazon Connect currently sends, even when the AI agent’s security profile can view contact attributes; if AWS starts including them, they will appear automatically under the same prefix. You cannot choose which contact data Amazon Connect shares; AWS passes a fixed set of context.

To pass additional context, use the conversation initiation webhook. For Amazon Connect sessions the webhook is called before the agent speaks with caller_id set to the customer’s number, called_number set to the Amazon Connect number, and call_id set to the Amazon Connect contact ID, so a Lambda in your flow can store contact attributes keyed by contact ID and the webhook can return them as dynamic variables and configuration overrides.

Transferring to a human

Amazon Connect routes a contact to a human queue when the ElevenLabs session ends with an Escalate outcome, which your flow’s Escalate branch handles with Set working queue and Transfer to queue. Any queue treatment, whisper flow, or agent selection is handled by Amazon Connect.

The End call tool produces a Complete outcome. Post-call analysis and the post-call webhook run as usual after either outcome.

Only the outcome type and a reason string travel back to Amazon Connect. To hand routing data to the flow, give the agent a webhook tool that calls Amazon Connect’s UpdateContactAttributes API with amazon_connect_contact_id and the values to store, and instruct the agent to call it before ending the call. The flow can then read those attributes with a Check contact attributes block after the Lex block. The post-call webhook fires after the flow has already continued, so it suits CRM updates rather than routing decisions.

Traces

Amazon Connect requires external agents to send trace data for every collaboration. When Amazon Connect subscribes to tracing on the session, ElevenLabs sends an OpenTelemetry trace for each agent turn containing the caller’s transcript, the agent’s response, each tool call with its result, and per-span timing. Amazon Connect stores these traces with the contact; see AI agent traces for how to view them. Transcripts and tool results in these traces are subject to the same redaction settings as the rest of your contact data in Amazon Connect, so review your data-handling requirements before enabling the integration. Like post-call webhooks, traces are delivered to your own systems: agents in zero retention mode still send them, because zero retention governs what ElevenLabs stores, not what your Amazon Connect instance receives.

Audio

Amazon Connect proposes 16-bit mono linear PCM at 8, 16, or 24 kHz on each session and ElevenLabs adopts the proposal, so the agent’s configured audio formats are not used for Amazon Connect sessions. Caller barge-in is detected by ElevenLabs and reported to Amazon Connect so buffered playback is flushed immediately. Keypad input collected by Amazon Connect is delivered to the agent as DTMF digits. Amazon Connect’s own silence marker is ignored; use the agent’s turn timeout to re-prompt a quiet caller.

Limitations and unsupported features

Client tools and the Play keypad touch tone system tool are not supported. Transfer to number does not yet support Amazon Connect; human handoff arrives as an Amazon Connect transfer type in that tool.
Data collection results are not returned to the flow, and Amazon Connect decides which contact data it shares. Use the conversation initiation webhook keyed by amazon_connect_contact_id for additional context, a webhook tool that calls UpdateContactAttributes for routing data, and the post-call webhook for everything else.
Configuration overrides such as system__override_first_message cannot be passed from the flow. Return them from the conversation initiation webhook instead.
Voice sessions require immediate hand-off. The Amazon Connect chat channel, text streaming, and behind-the-scenes (delegateAgentConfiguration) collaboration are not supported yet.
Traces sent to Amazon Connect cover the caller’s transcript, the agent’s responses, tool calls with their results, and timing. Tool call parameters are not included.
Amazon Connect’s third-party agent support is only available where AWS has enabled it and may incur additional AWS charges.

Troubleshooting

The flow fails with 'A2A WebSocket upgrade ... failed (HTTP 403)'

The error is raised inside AWS before any request reaches ElevenLabs. Check CloudTrail for AccessDenied on wisdom:SendMessage from the Lex service role: the role attached to the bot needs wisdom:CreateSession, wisdom:GetAssistant, wisdom:SendMessage, and wisdom:GetNextMessage on the assistant and its sessions.
Confirm the security profile allows the application and is associated with the published orchestration agent version referenced by the flow.
Confirm the secret’s KMS key and resource policy grant connect.amazonaws.com access.

The flow fails with 'the hand-off to the target agent could not be completed'

Amazon Connect gives the WebSocket connection roughly 20 seconds to come up. Confirm the AccessUrl is reachable from AWS: wss://, the right agent ID, no network allow-list in the way.
If you proxy the connection through your own infrastructure, keep that proxy warm. A cold serverless instance can take longer than the hand-off window, and Amazon Connect gives up before ElevenLabs ever sees the request.

The Lex block takes its Error branch and the caller hears nothing

Confirm both session attributes are set on the Get customer input block: x-amz-lex:q-in-connect:ai-agent-arn with the published, versioned agent ARN and x-amz-lex:qic-audio-passthrough set to true.
Confirm the security profile that allows the application is attached to that agent version.
Read the block’s entry in the flow log; it carries the error Amazon Connect encountered.

The session ends immediately after connecting

Confirm the AccessUrl uses wss://, contains the correct agent ID, and points at the region your workspace lives in.
Confirm the API key is active, belongs to the agent’s workspace, and has no IP restrictions.
Confirm the Amazon Connect transport is enabled for your workspace.

The caller hears the flow's error prompt after the agent finishes

In the Lex block, make sure the Default output leads to the block that compares $.Lex.SessionAttributes.Tool, and compare against the title-case values Escalate and Complete.

The agent never speaks and the session ends after a few seconds

Confirm the collaborator is configured with audioStreamingEnabled set to true. With text streaming, Amazon Connect sends text turns and expects text responses, which ElevenLabs does not support; the ElevenLabs logs show INIT_SESSION carries no audio configuration.

Dynamic variables are missing

Amazon Connect provides the contact system attributes and identifiers listed above. Custom contact attributes set in the flow do not reach the agent; pass them through the conversation initiation webhook instead. If the agent’s first message or prompt references a variable that is never provided, the session fails at startup.

Search documentation

Help Center

Amazon Connect

Overview

How the integration works

Requirements

Configure ElevenLabs

Register the ElevenLabs application in AWS

Build the contact flow

Test the integration

Dynamic variables

Transferring to a human

Traces

Audio

Limitations and unsupported features

Troubleshooting

Help Center
