Structured procedures

A structured procedure is a procedure that runs a fixed sequence of steps. A free-form procedure is natural-language guidance the agent interprets and adapts to the situation. A structured procedure is an ordered list of typed steps the agent runs in order every time the procedure applies.

Use a structured procedure when specific steps must happen the same way on every call: verifying a caller's identity, escalating a ticket, or taking a payment. You author it as a short list of plain-language steps.

Like every procedure, a structured procedure has a trigger that describes when it applies. When a conversation matches the trigger, the agent runs the procedure's steps in order, then returns to the rest of the conversation.

Use a structured procedure when specific steps must run the same way every time, but you still want to author quickly in plain steps. For how it compares to free-form procedures, workflows, and the system prompt, see When to use procedures.

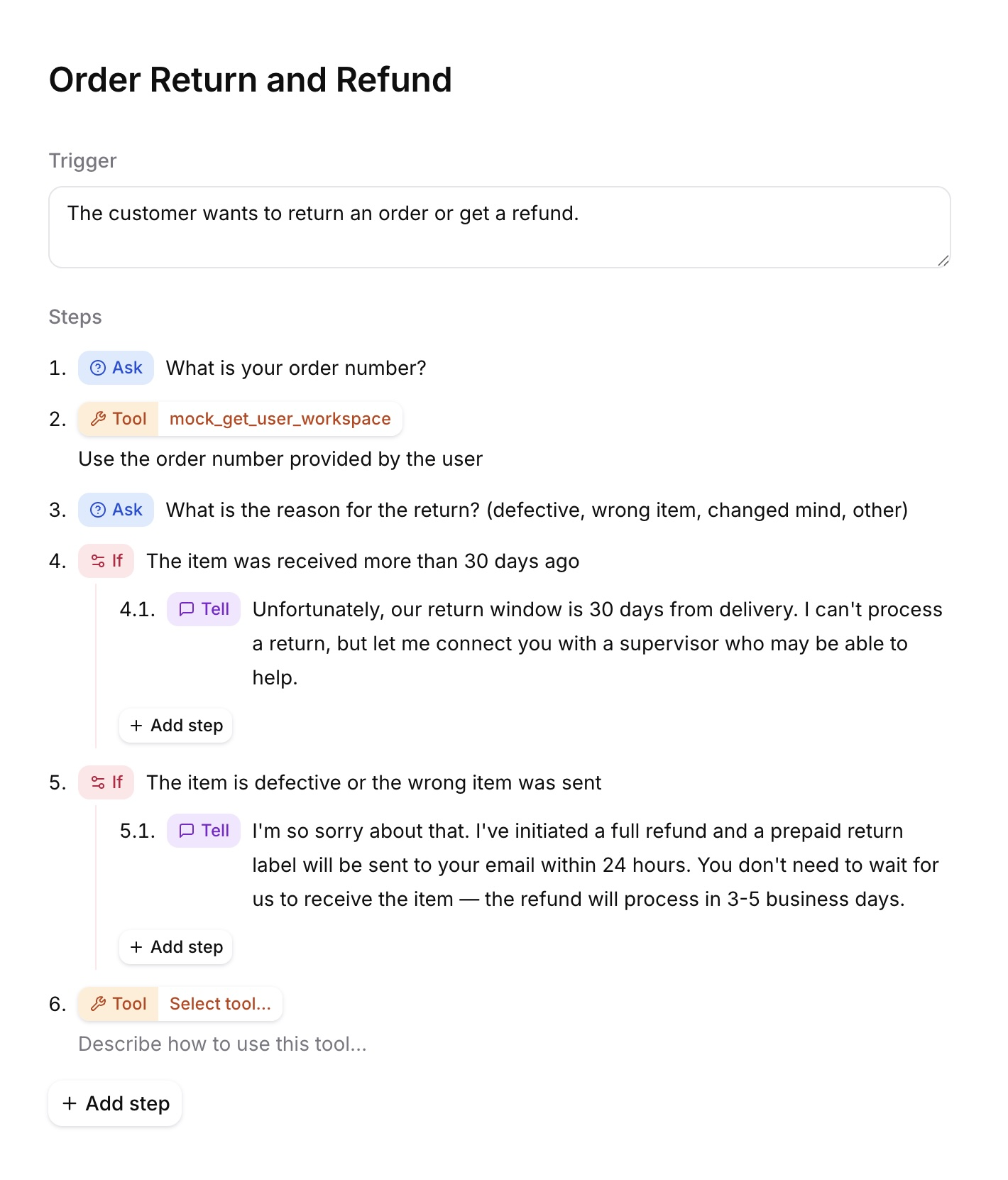

A structured procedure has three parts: a name, a trigger, and an ordered list of steps.

A short label that identifies the procedure in the dashboard. The name is never sent to the LLM, so it does not affect agent behavior.

A plain-language description of when the agent should run this procedure, for example When the user asks to refund an order. The agent compares the user's intent against each procedure's trigger and runs the matching one, so triggers should be concrete and distinct. A trigger works the same way as for any procedure; see Writing triggers.

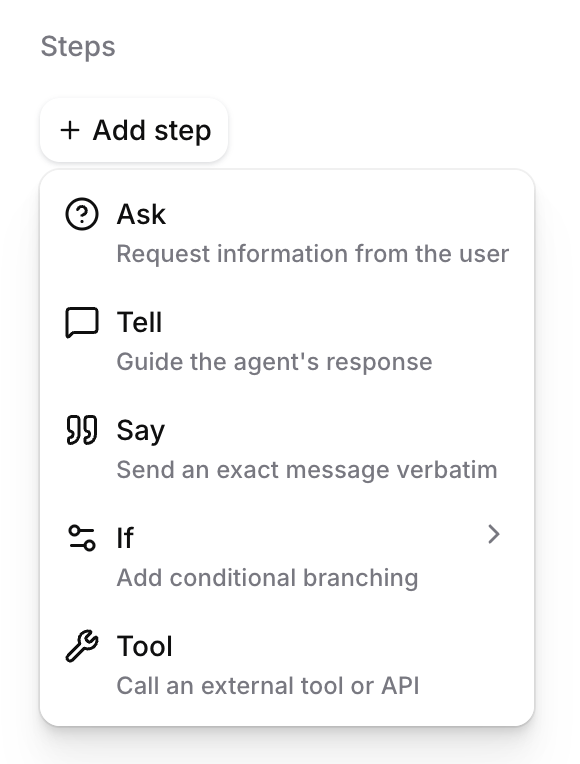

The procedure body is an ordered list of typed steps. There are multiple step types, and you combine them to describe the task.

Structured procedure content is a JSON-encoded document containing a steps array. Each step is an object identified by its type.

An Ask step instructs the agent to request information and wait until the user provides an appropriate response.

• API type: ask
• instruction: Required, non-empty string.

{  "type": "ask",  "instruction": "Ask the user for their order ID."}

A Tell step instructs the agent to generate a single message in its own words. Unlike Ask, it does not wait for a user response before continuing.

• API type: tell
• instruction: Required, non-empty string.

{  "type": "tell",  "instruction": "Explain that the refund normally takes five to ten business days."}

A Say step speaks the supplied text exactly as written.

• API type: say
• message: Required, non-empty string.

{  "type": "say",  "message": "Your refund has been submitted."}

An If step contains one or more ordered conditional arms. The first matching arm runs. The optional fallback array acts as the else arm.

• API type: branch
• branches: Required, non-empty list of conditional arms.
• fallback: Optional list of else steps.
• Each arm requires a condition and a non-empty steps list.

{  "type": "branch",  "branches": [    {      "condition": {        "type": "llm",        "condition": "The user is on an annual plan."      },      "steps": [        {          "type": "say",          "message": "Your annual plan is eligible for a prorated refund."        }      ]    }  ],  "fallback": [    {      "type": "tell",      "instruction": "Explain that the account's plan could not be determined."    }  ]}

This behaves like if/else-if/else:

1. Conditions are evaluated in order.
2. The first matching arm runs.
3. If no condition matches, fallback runs.
4. After an arm finishes, the procedure rejoins the main sequence.

The example above uses a natural-language condition. Conditions can also use workflow expressions:

{  "type": "expression",  "expression": {    "type": "eq_operator",    "left": {      "type": "dynamic_variable",      "name": "plan_tier"    },    "right": {      "type": "string_literal",      "value": "annual"    }  }}

All arms in one If step must use the same condition type: either llm or expression.

An If step may be the first procedure step. However:

• If steps cannot be nested.
• Two If steps cannot be placed consecutively.
• An expression condition cannot directly follow an Ask step. Use an LLM condition to evaluate a user's free-text response.

A Tool step calls a specific tool.

• API type: tool_call
• tool_id: Required, non-empty tool ID.
• tool_name: Required tool name.
• instruction: Optional instruction describing how to call the tool.
• on_failure: Optional failure handler.

{  "type": "tool_call",  "tool_id": "tool_abc123",  "tool_name": "lookup_order",  "instruction": "Look up the order using the order ID provided by the user."}

Without on_failure, a failed tool call stops the procedure. Add on_failure to handle specific failures, retry the tool, or continue with fallback steps.

• branches: Optional list of ordered conditions. The first matching branch runs.
• fallback: Required, non-empty list of steps. It runs when no branch matches.

{  "type": "tool_call",  "tool_id": "tool_abc123",  "tool_name": "lookup_order",  "on_failure": {    "fallback": [      {        "type": "tell",        "instruction": "Explain that the order could not be retrieved and offer to connect the user with support."      }    ]  }}

Failure-handler branches may contain Ask, Tell, Say, Sub-procedure, System tool, and Retry steps. They cannot contain Tool or If steps. All conditional branches in one failure handler must use the same condition type.

A Retry step reattempts the Tool step whose failure handler contains it.

• API type: retry
• max_retries: Optional integer from 1 through 3. Defaults to 1.
• The value counts reattempts after the original tool call.
• Retry is valid only inside on_failure.
• Retry must be the final step in its failure-handler branch because subsequent steps would be unreachable.
• If all attempts fail, the procedure stops.

{  "type": "retry",  "max_retries": 2}

A Sub-procedure step runs another structured procedure. When it finishes, execution returns to the step after the Sub-procedure step.

• API type: sub_procedure
• procedure_id: Required, non-empty procedure ID.
• The target must exist on the same agent.
• The target must be a structured procedure.
• A procedure cannot invoke itself.

{  "type": "sub_procedure",  "procedure_id": "agtprc_6qbpwdq8n01bxhk44bgjy6f10ck3"}

A System tool step performs a built-in system action.

• API type: system_tool
• system_tool_name: Required system-tool name.
• Currently, only end_call is supported. More system tools may be added later.
• Because end_call is terminal, it must be the final step in its containing sequence or branch.

{  "type": "system_tool",  "system_tool_name": "end_call"}

This example handles an order cancellation based on shipment status. It retries a failed tool call, invokes another structured procedure, then ends the call.

{
  "trigger": "When the user asks to cancel an order and request a refund.",
  "steps": [
    {
      "type": "ask",
      "instruction": "Ask the user for their order ID."
    },
    {
      "type": "branch",
      "branches": [
        {
          "condition": {
            "type": "llm",
            "condition": "The user says the order has already shipped."
          },
          "steps": [
            {
              "type": "tell",
              "instruction": "Explain that shipped orders must be returned before they can be refunded."
            }
          ]
        },
        {
          "condition": {
            "type": "llm",
            "condition": "The user says the order has not shipped."
          },
          "steps": [
            {
              "type": "tool_call",
              "tool_id": "tool_abc123",
              "tool_name": "cancel_order",
              "instruction": "Cancel the order using the order ID provided by the user.",
              "on_failure": {
                "fallback": [
                  {
                    "type": "retry",
                    "max_retries": 2
                  }
                ]
              }
            }
          ]
        }
      ],
      "fallback": [
        {
          "type": "ask",
          "instruction": "Ask whether the order has already shipped."
        }
      ]
    },
    {
      "type": "sub_procedure",
      "procedure_id": "agtprc_6qbpwdq8n01bxhk44bgjy6f10ck3"
    },
    {
      "type": "say",
      "message": "Thank you for contacting us. Goodbye."
    },
    {
      "type": "system_tool",
      "system_tool_name": "end_call"
    }
  ]
}

When the user's request matches a procedure's trigger during a conversation, the agent enters the procedure and runs its steps in order, the same way every time. While inside the procedure, the agent focuses on those steps; when it reaches the end, it returns to where it left off in the conversation.

If a Tool step fails and does not define on_failure, the procedure stops without running the remaining steps. When on_failure is configured, the procedure runs the first matching failure branch or its required fallback. A handled failure continues to the next procedure step unless the selected handler retries the tool, ends the call, or invokes another terminal path.

Open your agent in the dashboard, then select Procedures. Use + to create a structured procedure. Add a trigger, select a type for each step, and publish the agent changes.

API and SDK payloads use type: "deterministic" for structured procedures. Their content is a JSON-encoded document. The /procedures/compile endpoint generates workflow nodes from this document.

• An ElevenLabs API key in the ELEVENLABS_API_KEY environment variable.
• The target agent_id and branch_id. See Agent versioning for branch operations.
• Version 2.60.0 or newer of the elevenlabs Python package or @elevenlabs/elevenlabs-js JavaScript package.
• curl and jq for the REST examples.

API edits are private to your user on the selected branch until you publish a new agent version.

Create a structured procedure with POST /procedures and set type to deterministic. Update an existing procedure with PATCH /procedures/{procedure_id}/draft, as shown below.

Include trigger as a top-level field and repeat the same value inside the structured document, keeping the two in sync. JSON-encode the document in content rather than sending a nested object.

import jsonfrom elevenlabs import ElevenLabselevenlabs = ElevenLabs()elevenlabs.conversational_ai.agents.procedures.drafts.update(    agent_id="agent_7101k5zvyjhmfg983brhmhkd98n6",    branch_id="agtbranch_0901k4aafjxxfxt93gd841r7tv5t",    procedure_id="agtprc_6qbpwdq8n01bxhk44bgjy6f10ck3",    name="Refund request",    type="deterministic",    trigger="When the user asks to refund an order",    content=json.dumps(        {            "trigger": "When the user asks to refund an order",            "steps": [{"type": "ask", "instruction": "Ask for the order ID."}],        }    ),)

import { ElevenLabsClient } from "@elevenlabs/elevenlabs-js";const elevenlabs = new ElevenLabsClient();await elevenlabs.conversationalAi.agents.procedures.drafts.update(  "agent_7101k5zvyjhmfg983brhmhkd98n6",  "agtbranch_0901k4aafjxxfxt93gd841r7tv5t",  "agtprc_6qbpwdq8n01bxhk44bgjy6f10ck3",  {    name: "Refund request",    type: "deterministic",    trigger: "When the user asks to refund an order",    content: JSON.stringify({      trigger: "When the user asks to refund an order",      steps: [{ type: "ask", instruction: "Ask for the order ID." }],    }),  });

curl -X PATCH "https://api.elevenlabs.io/v1/convai/agents/agent_7101k5zvyjhmfg983brhmhkd98n6/branches/agtbranch_0901k4aafjxxfxt93gd841r7tv5t/procedures/agtprc_6qbpwdq8n01bxhk44bgjy6f10ck3/draft" \  -H "xi-api-key: $ELEVENLABS_API_KEY" \  -H "Content-Type: application/json" \  -d '{    "name": "Refund request",    "type": "deterministic",    "trigger": "When the user asks to refund an order",    "content": "{\"trigger\":\"When the user asks to refund an order\",\"steps\":[{\"type\":\"ask\",\"instruction\":\"Ask for the order ID.\"}]}"  }'

/procedures/compile validates the structured drafts and returns a workflow. A validation failure returns 400 with errors keyed by procedure ID. Fix the reported drafts, then call the endpoint again.

Removing the last remaining structured procedure does not remove its workflow nodes until you regenerate the workflow.

After merging agent branches, regenerate the workflow on the target branch even if no procedure drafts changed. A merge combines existing workflow nodes by ID, while each generated workflow uses new node IDs. Regeneration removes duplicated or orphaned nodes.

Pass the returned workflow to Update agent. This publishes the drafts and generated nodes in the same agent version.

from elevenlabs import ElevenLabselevenlabs = ElevenLabs()compiled = elevenlabs.conversational_ai.agents.procedures.compile(    agent_id="agent_7101k5zvyjhmfg983brhmhkd98n6",    branch_id="agtbranch_0901k4aafjxxfxt93gd841r7tv5t",)elevenlabs.conversational_ai.agents.update(    agent_id="agent_7101k5zvyjhmfg983brhmhkd98n6",    branch_id="agtbranch_0901k4aafjxxfxt93gd841r7tv5t",    workflow=compiled.workflow,)

import { ElevenLabsClient } from "@elevenlabs/elevenlabs-js";const elevenlabs = new ElevenLabsClient();const compiled = await elevenlabs.conversationalAi.agents.procedures.compile(  "agent_7101k5zvyjhmfg983brhmhkd98n6",  "agtbranch_0901k4aafjxxfxt93gd841r7tv5t");await elevenlabs.conversationalAi.agents.update("agent_7101k5zvyjhmfg983brhmhkd98n6", {  branchId: "agtbranch_0901k4aafjxxfxt93gd841r7tv5t",  workflow: compiled.workflow,});

set -euo pipefailCOMPILE_RESPONSE=$(curl -fsS -X POST \  "https://api.elevenlabs.io/v1/convai/agents/agent_7101k5zvyjhmfg983brhmhkd98n6/branches/agtbranch_0901k4aafjxxfxt93gd841r7tv5t/procedures/compile" \  -H "xi-api-key: $ELEVENLABS_API_KEY")COMPILED_WORKFLOW=$(printf "%s" "$COMPILE_RESPONSE" | jq -ce '.workflow')PUBLISH_BODY=$(jq -n \  --argjson workflow "$COMPILED_WORKFLOW" \  '{workflow: $workflow}')curl -X PATCH \  "https://api.elevenlabs.io/v1/convai/agents/agent_7101k5zvyjhmfg983brhmhkd98n6?branch_id=agtbranch_0901k4aafjxxfxt93gd841r7tv5t" \  -H "xi-api-key: $ELEVENLABS_API_KEY" \  -H "Content-Type: application/json" \  -d "$PUBLISH_BODY"

See Manage procedures for draft removal and discard behavior, or the Procedures API reference for complete endpoint schemas.

An Ask step does not advance until it has asked your question and received an appropriate answer. You do not need a follow-up step to check that the information was collected; the Ask step guarantees it before moving on.

A Tool step only runs the tool; the agent cannot speak or make a decision during it. To talk to the user or branch on what the tool returned, put that in a separate step before or after the Tool step.

Use a Tell step when the agent should compose the message itself, and a Say step when the wording must be verbatim. Both deliver exactly one message, so there is no need to instruct a step to send a single message.

The general guidance for composing procedures applies to structured procedures too — see Composing procedures on the Free-form procedures page.

One pattern is specific to mixing types: a free-form procedure can reference a structured one. Keep open-ended handling in a free-form procedure and delegate the parts that must run the same way every time, such as identity verification or escalation, to a structured procedure.

• If steps cannot be nested, and two If steps cannot be placed back to back.

Structured procedures force internal tool calls when entering a sub-procedure and completing a procedure. Major OpenAI, Anthropic, Gemini, and Grok model families support forced tool choice. Other models or custom providers may not guarantee it, which can make sub-procedure transitions or procedure completion less reliable. Verify forced tool-choice support when using another model provider.

See Procedures for limits that apply to all procedures, including the content size cap and how structured procedures differ from free-form ones.
