Register Twilio calls

Advanced

This guide covers an advanced integration pattern for developers who need full control over their Twilio infrastructure. For a simpler setup, consider using the native Twilio integration which handles configuration automatically.

When to use each approach

Before diving in, understand the trade-offs between the native integration and the register call approach:

Feature	Native integration	Register call
Ease of setup	Easier	More complex
Call transfers	Supported	Not supported
Custom Twilio logic	Limited	Full control
Phone number management	Through ElevenLabs	Through Twilio

Overview

The register call endpoint allows you to use your own Twilio infrastructure while leveraging ElevenLabs agents for the conversation. Instead of importing your Twilio number into ElevenLabs, you maintain full control of your Twilio setup and use the ElevenLabs API to register calls and receive TwiML for connecting them to your agents.

This approach is ideal when you:

Need to maintain your existing Twilio infrastructure and workflows
Want programmatic control over call routing and handling
Have complex call flows that require custom Twilio logic before connecting to an agent
Need to integrate ElevenLabs agents into an existing telephony system

How it works

Your server receives an inbound call or initiates an outbound call via Twilio
Your server calls the ElevenLabs register call endpoint with agent and call details
ElevenLabs returns TwiML that connects the call to your agent via WebSocket
You return this TwiML to Twilio to establish the connection

Prerequisites

An ElevenLabs account
A configured ElevenLabs Conversational Agent (create one here)
A Twilio account with an active phone number
Your agent configured with μ-law 8000 Hz audio format (see agent configuration)

Agent configuration

Before using the register call endpoint, configure your agent to use the correct audio format supported by Twilio.

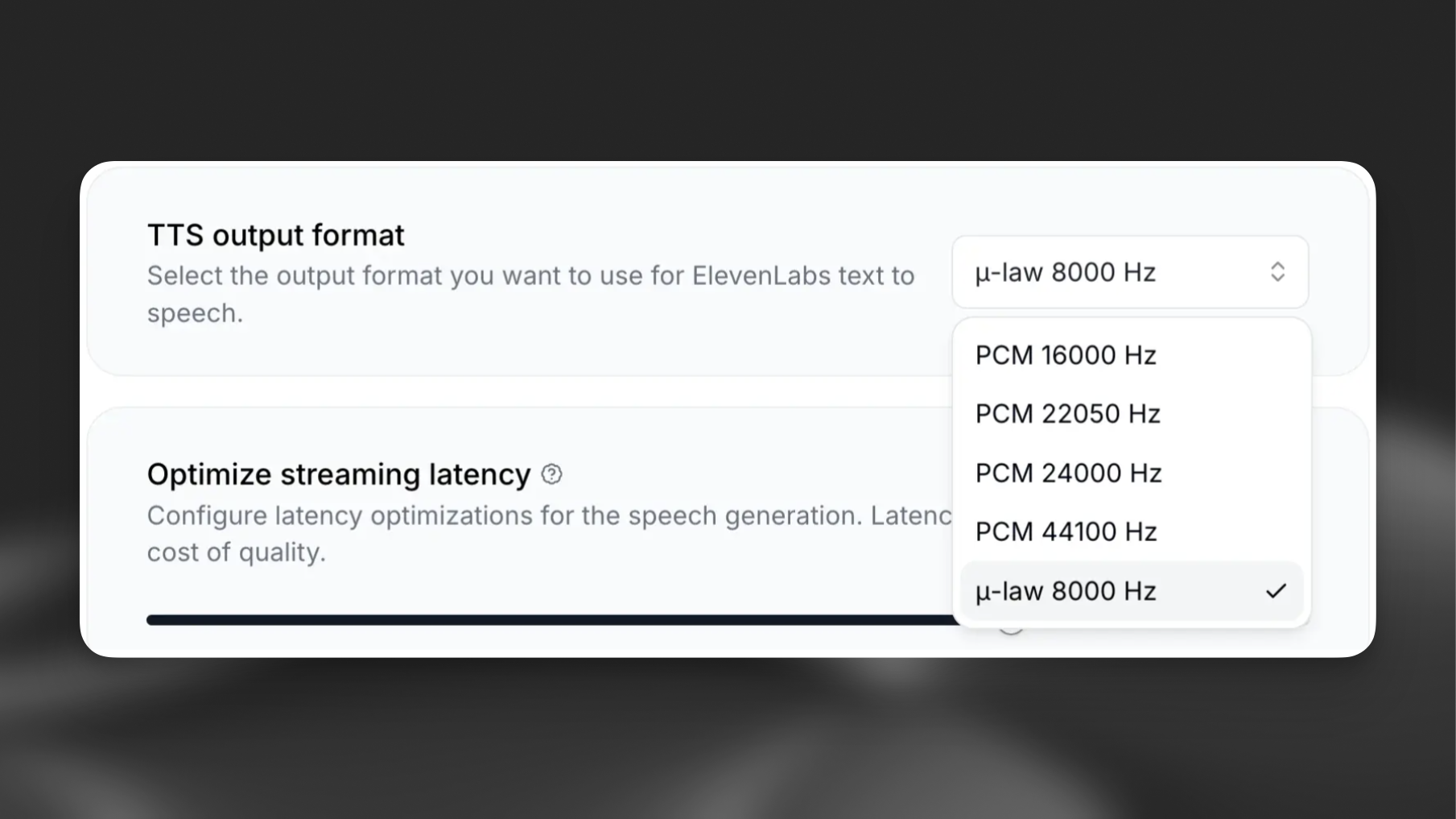

Configure TTS Output

Navigate to your agent settings
Go to the Voice section
Select "μ-law 8000 Hz" from the dropdown

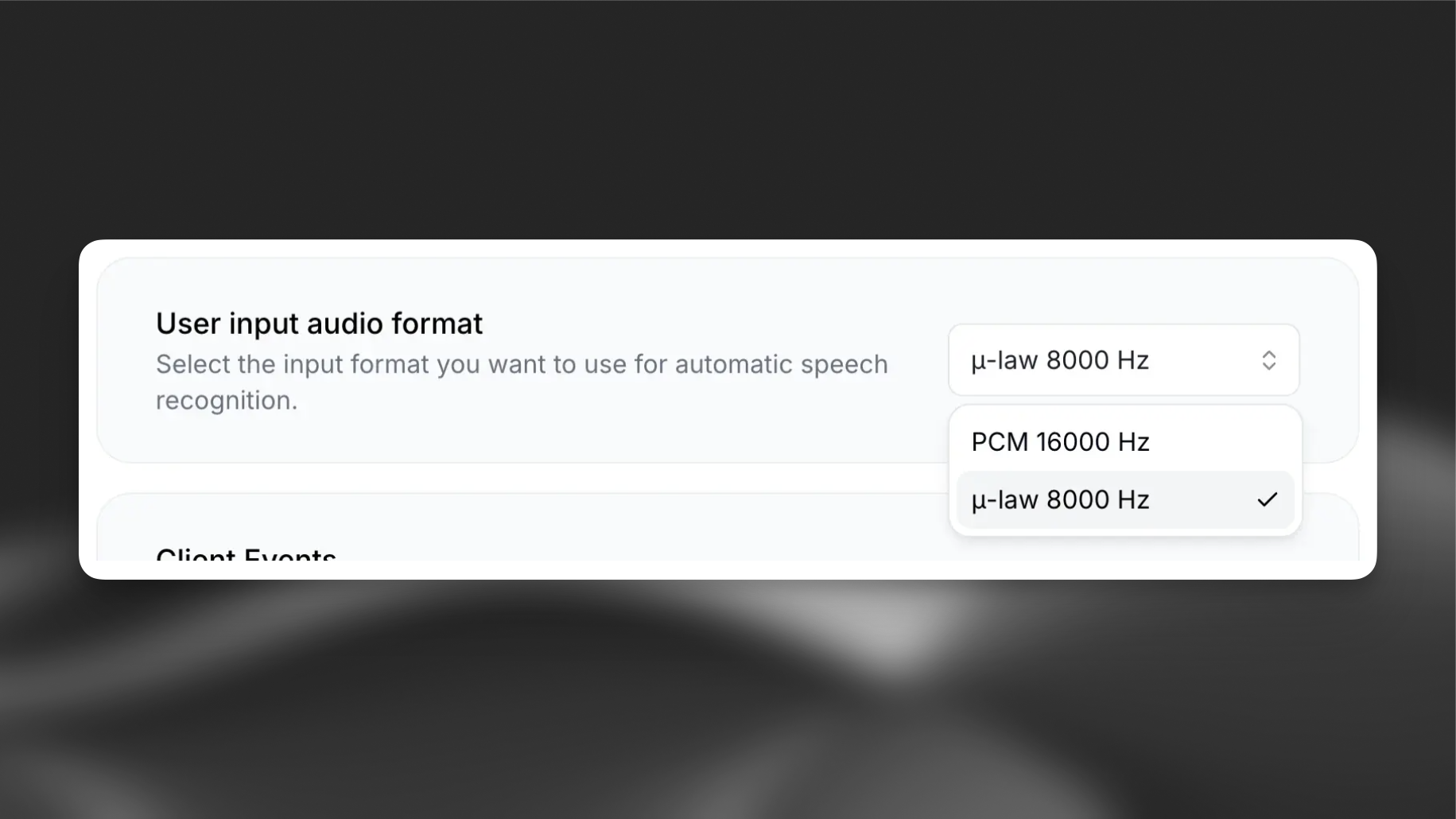

Set Input Format

Navigate to your agent settings
Go to the Advanced section
Select "μ-law 8000 Hz" for the input format

API reference

The register call endpoint accepts the following parameters:

Parameter	Type	Required	Description
`agent_id`	string	Yes	The ID of the agent to handle the call
`from_number`	string	Yes	The caller's phone number
`to_number`	string	Yes	The destination phone number
`direction`	string	No	Call direction: `inbound` (default) or `outbound`
`conversation_initiation_client_data`	object	No	Dynamic variables and configuration overrides

The endpoint returns TwiML that you should pass directly to Twilio.

Implementation

Python

import os
from fastapi import FastAPI, Request
from fastapi.responses import Response
from elevenlabs import ElevenLabs

app = FastAPI()

elevenlabs = ElevenLabs()
AGENT_ID = os.getenv("ELEVENLABS_AGENT_ID")

@app.post("/twilio/inbound")
async def handle_inbound_call(request: Request):
    form_data = await request.form()
    from_number = form_data.get("From")
    to_number = form_data.get("To")

    # Register the call with ElevenLabs
    twiml = elevenlabs.conversational_ai.twilio.register_call(
        agent_id=AGENT_ID,
        from_number=from_number,
        to_number=to_number,
        direction="inbound",
        conversation_initiation_client_data={
            "dynamic_variables": {
                "caller_number": from_number,
            }
        }
    )

    # Return the TwiML directly to Twilio
    return Response(content=twiml, media_type="application/xml")

if __name__ == "__main__":
    import uvicorn
    uvicorn.run(app, host="0.0.0.0", port=8000)

TypeScript

import { ElevenLabsClient } from "@elevenlabs/elevenlabs-js";
import express from "express";

const app = express();
app.use(express.urlencoded({ extended: true }));

const elevenlabs = new ElevenLabsClient();
const AGENT_ID = process.env.ELEVENLABS_AGENT_ID;

// Handle incoming Twilio calls
app.post("/twilio/inbound", async (req, res) => {
  const { From: fromNumber, To: toNumber } = req.body;

  // Register the call with ElevenLabs
  const twiml = await elevenlabs.conversationalAi.twilio.registerCall({
    agentId: AGENT_ID,
    fromNumber,
    toNumber,
    direction: "inbound",
    conversationInitiationClientData: {
      dynamicVariables: {
        caller_number: fromNumber,
      },
    },
  });

  // Return the TwiML directly to Twilio
  res.type("application/xml").send(twiml);
});

app.listen(8000, () => {
  console.log("Server running on port 8000");
});

Outbound calls

For outbound calls, initiate the call through Twilio and point the webhook URL to your server, which then registers with ElevenLabs:

Python

from twilio.rest import Client
import os
from fastapi import Request
from fastapi.responses import Response
from elevenlabs import ElevenLabs

# Initialize clients
twilio_client = Client(
    os.getenv("TWILIO_ACCOUNT_SID"),
    os.getenv("TWILIO_AUTH_TOKEN")
)
elevenlabs = ElevenLabs()
AGENT_ID = os.getenv("ELEVENLABS_AGENT_ID")

def initiate_outbound_call(to_number: str):
    call = twilio_client.calls.create(
        from_=os.getenv("TWILIO_PHONE_NUMBER"),
        to=to_number,
        url="https://your-server.com/twilio/outbound"
    )
    return call.sid

@app.post("/twilio/outbound")
async def handle_outbound_webhook(request: Request):
    form_data = await request.form()
    from_number = form_data.get("From")
    to_number = form_data.get("To")

    twiml = elevenlabs.conversational_ai.twilio.register_call(
        agent_id=AGENT_ID,
        from_number=from_number,
        to_number=to_number,
        direction="outbound",
    )

    return Response(content=twiml, media_type="application/xml")

TypeScript

import { ElevenLabsClient } from "@elevenlabs/elevenlabs-js";
import Twilio from "twilio";

// Initialize clients
const twilioClient = new Twilio(process.env.TWILIO_ACCOUNT_SID, process.env.TWILIO_AUTH_TOKEN);
const elevenlabs = new ElevenLabsClient();
const AGENT_ID = process.env.ELEVENLABS_AGENT_ID;

// Initiate an outbound call
async function initiateOutboundCall(toNumber: string) {
  const call = await twilioClient.calls.create({
    from: process.env.TWILIO_PHONE_NUMBER,
    to: toNumber,
    url: "https://your-server.com/twilio/outbound",
  });
  return call.sid;
}

// Handle the Twilio webhook for outbound calls
app.post("/twilio/outbound", async (req, res) => {
  const { From: fromNumber, To: toNumber } = req.body;

  const twiml = await elevenlabs.conversationalAi.twilio.registerCall({
    agentId: AGENT_ID,
    fromNumber,
    toNumber,
    direction: "outbound",
  });

  res.type("application/xml").send(twiml);
});

Personalizing conversations

Use the conversation_initiation_client_data parameter to pass dynamic variables and override agent configuration:

JSON

{
  "agent_id": "your-agent-id",
  "from_number": "+1234567890",
  "to_number": "+0987654321",
  "direction": "inbound",
  "conversation_initiation_client_data": {
    "dynamic_variables": {
      "customer_name": "John Doe",
      "account_type": "premium",
      "order_id": "ORD-12345"
    }
  }
}

Twilio configuration

Configure your Twilio phone number to point to your server:

Create a public URL

For local development, use ngrok to expose your server:

Bash

ngrok http 8000

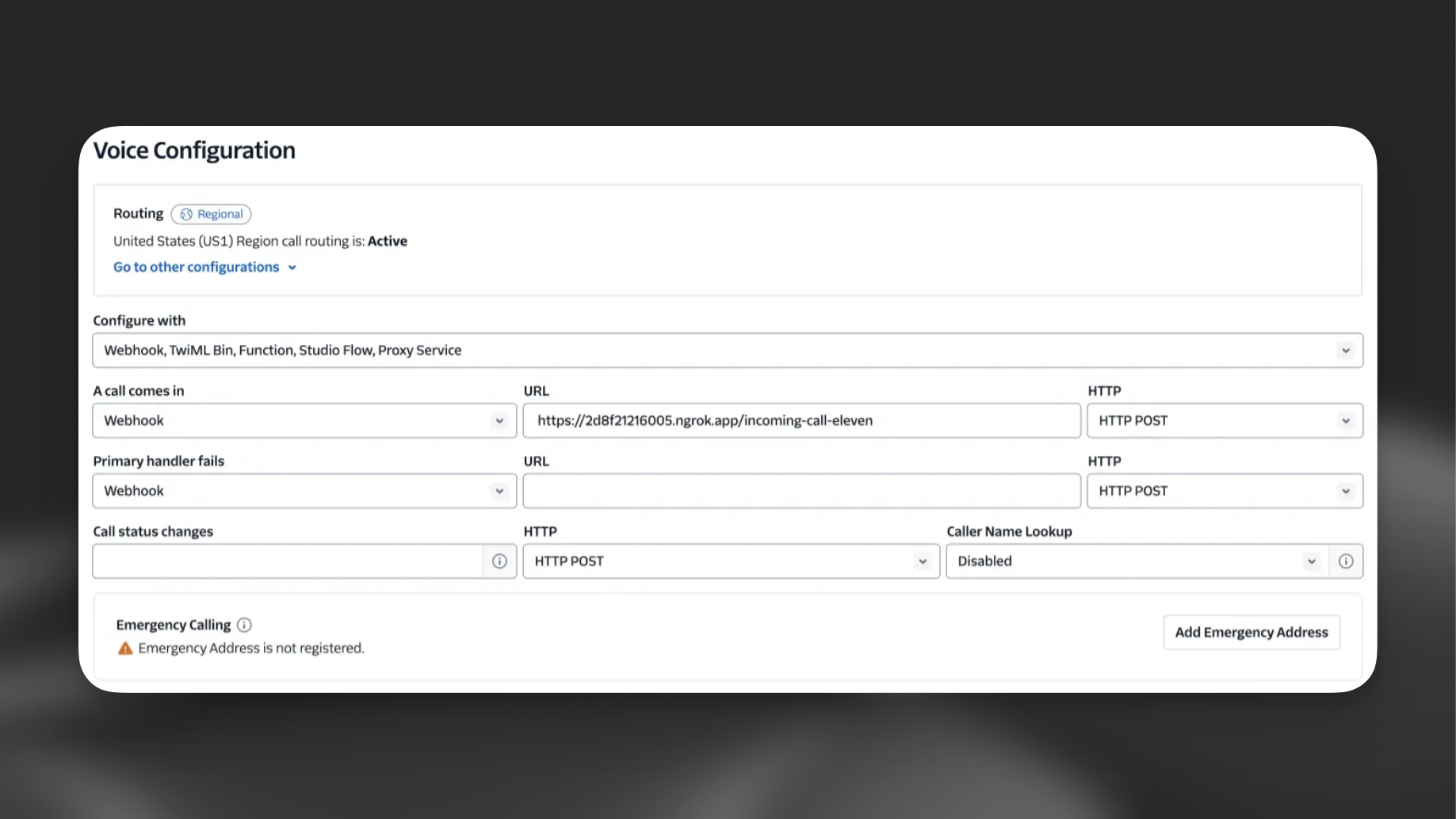

Configure your Twilio number

Go to the Twilio Console
Navigate to Phone Numbers > Manage > Active numbers
Select your phone number
Under "Voice Configuration", set the webhook URL to your server endpoint (e.g., https://your-ngrok-url.ngrok.app/twilio/inbound)
Set the HTTP method to POST

Limitations

When using the register call endpoint instead of the native integration:

No call transfers: Transfer functionality is not available as ElevenLabs does not have access to your Twilio credentials
Manual configuration: You must configure audio formats and handle TwiML routing yourself
No dashboard import: Phone numbers registered this way do not appear in the ElevenLabs phone numbers dashboard
