Real-time monitoring

Real-time monitoring enables live observation of agent conversations via WebSocket and remote control of active calls. This feature provides real-time visibility into conversation events and allows intervention through control commands.

Monitoring sessions stream conversation events in real-time, including transcripts, agent responses, and corrections. You can also send control commands to end calls, transfer to phone numbers, or enable human takeover during active chat conversations.

Connect to a live conversation using the monitoring endpoint:

wss://api.elevenlabs.io/v1/convai/conversations/{conversation_id}/monitor

Replace {conversation_id} with the ID of the conversation you want to monitor.

Authentication requires:

• API key permissions: Your API key must have ElevenLabs Agents Write scope
• Workspace access: You must have EDITOR access to the agent's workspace
• Header format: Include your API key via the xi-api-key header

const ws = new WebSocket('wss://api.elevenlabs.io/v1/convai/conversations/conv_123/monitor', {
  headers: {
    'xi-api-key': 'your_api_key_here',
  },
});

import websockets
import asyncio

async def monitor_conversation():
    uri = "wss://api.elevenlabs.io/v1/convai/conversations/conv_123/monitor"
    headers = {
        "xi-api-key": "your_api_key_here"
    }

    async with websockets.connect(uri, extra_headers=headers) as websocket:
        # Connection established
        pass

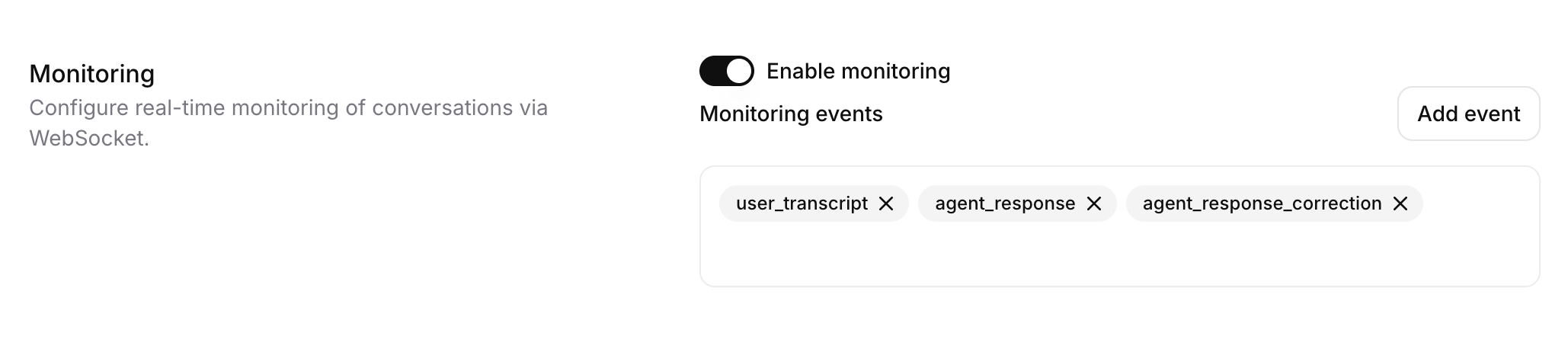

Before monitoring conversations, enable the feature in your agent's settings:

Open your agent's configuration page in the dashboard.

In the Advanced settings panel, toggle the "Monitoring" option.

Choose which events you want to monitor. See Client Events for a full list of available events.

Send JSON commands through the WebSocket to control the conversation:

Terminate the active conversation immediately.

// End the active conversation
ws.send(JSON.stringify({
  command_type: "end_call"
}));

import json

# End the active conversation
await websocket.send(json.dumps({
    "command_type": "end_call"
}))

Transfer the call to a specified phone number.

// Transfer to a phone number
ws.send(JSON.stringify({
  command_type: "transfer_to_number",
  parameters: {
    phone_number: "+1234567890"
  }
}));

import json

# Transfer to a phone number
await websocket.send(json.dumps({
    "command_type": "transfer_to_number",
    "parameters": {
        "phone_number": "+1234567890"
    }
}))

Inject context or instructions into the active conversation so the agent can use the new information in its responses.

// Send a contextual update to the agent
ws.send(JSON.stringify({
  command_type: "contextual_update",
  parameters: {
    contextual_update: "<your update text>"
  }
}));

import json

# Send a contextual update to the agent
await websocket.send(json.dumps({
    "command_type": "contextual_update",
    "parameters": {
        "contextual_update": "<your update text>"
    }
}))

Switch from AI agent to human operator mode for chat conversations.

// Enable human takeover
ws.send(JSON.stringify({
  command_type: "enable_human_takeover"
}));

import json

# Enable human takeover
await websocket.send(json.dumps({
    "command_type": "enable_human_takeover"
}))

Send a message to the user as a human operator in chat conversations.

// Send a message as a human operator
ws.send(JSON.stringify({
  command_type: "send_human_message",
  parameters: {
    text: "How can I help you?"
  }
}));

import json

# Send a message as a human operator
await websocket.send(json.dumps({
    "command_type": "send_human_message",
    "parameters": {
        "text": "How can I help you?"
    }
}))

Return control from human operator back to the AI agent.

// Disable human takeover and return to AI
ws.send(JSON.stringify({
  command_type: "disable_human_takeover"
}));

import json

# Disable human takeover and return to AI
await websocket.send(json.dumps({
    "command_type": "disable_human_takeover"
}))

Real-time monitoring enables several operational scenarios:

Monitor agent conversations in real-time to ensure quality standards and identify training opportunities.

Detect conversations requiring human intervention and seamlessly take over from the AI agent.

Build real-time monitoring dashboards that aggregate conversation metrics and performance indicators.

Supervise multiple agent conversations simultaneously and intervene when necessary.

Implement automated systems that analyze conversation content and trigger actions based on specific conditions.

Use live conversations as training material and provide real-time feedback to improve agent performance.

Monitoring events are sent asynchronously to the conversation and may not arrive in the same order as the core conversation events. When processing events, do not rely on event order to reconstruct exact conversation timing.

The monitoring endpoint streams only text events and metadata. Raw audio data is not included in monitoring events.

Only approximately the last 100 events are cached and available when connecting to an active conversation. Earlier events cannot be retrieved.

VAD scores, turn probability metrics, and ping events cannot be monitored when custom event selection is enabled.

You must connect after the conversation has started. The monitoring endpoint cannot be used before conversation initiation.

API keys must have ElevenLabs Agents Write scope, and you must have EDITOR workspace access to monitor conversations.
